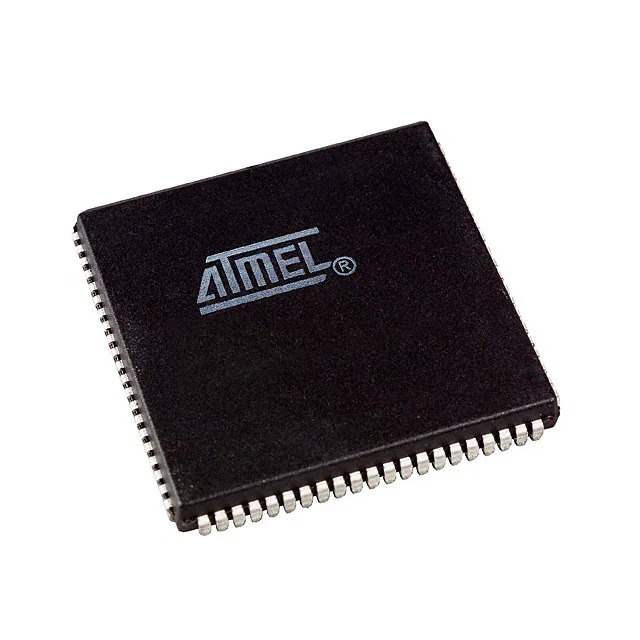

The ATF1504ASL-20JC84 is a high-performance, programmable logic device (PLD) from Microchip Technology's Atmel product line. This complex programmable logic device (CPLD) belongs to the ATF15xxASL series and is designed for a wide range of digital applications. It offers a versatile solution for system integration and customization in various industries, including automotive, telecommunications, consumer electronics, and industrial automation.

Key Features:

• Architecture: The ATF1504ASL-20JC84 features a flexible, reprogrammable architecture, which allows for rapid prototyping and iterative design processes. It has a high-density, sea-of-gates structure that provides ample logic capacity for complex designs.
• Speed Grade: With a speed grade of -20, this device operates at a maximum frequency of 20 MHz, ensuring timely processing and responsiveness for time-critical applications.
• Package: Housed in a 84-lead PLCC (Plastic Leaded Chip Carrier) package, the ATF1504ASL-20JC84 is designed for surface-mount technology (SMT), offering robustness and ease of integration into a variety of circuit board layouts.
• I/O Pins: It provides a generous number of user-configurable input/output pins, allowing for flexible interfacing with other components in a system.
• Programming: The device can be programmed using industry-standard tools and supports in-system programmability (ISP) via JTAG interface, facilitating updates and modifications without the need for removing the chip from its application environment.
• Power Consumption: Designed with power efficiency in mind, the ATF1504ASL-20JC84 operates with low power consumption, making it suitable for power-sensitive applications.

Applications:

The versatility and performance characteristics of the ATF1504ASL-20JC84 make it an ideal choice for a range of applications, including but not limited to:

• Automotive systems
• Industrial control systems
• Communication infrastructure
• Consumer electronics
• Data processing units

In conclusion, the ATF1504ASL-20JC84 from Microchip Technology is a powerful and adaptable CPLD that offers designers the flexibility and performance needed to meet the demands of modern digital systems. With its robust feature set and ease of use, it stands as a solid choice for system designers looking to create efficient, reliable, and high-performing solutions.
