Microchip Technology ATF1508ASVL-20JC84 CPLD

The ATF1508ASVL-20JC84 is a high-performance Complex Programmable Logic Device (CPLD) from the well-known manufacturer Microchip Technology. This versatile component is part of the Atmel ATF1500A family of CPLDs, designed to offer an optimal solution for power-sensitive and high-density applications. The device is particularly suitable for implementing logic functions in telecommunications, automotive, industrial control systems, and consumer electronics.

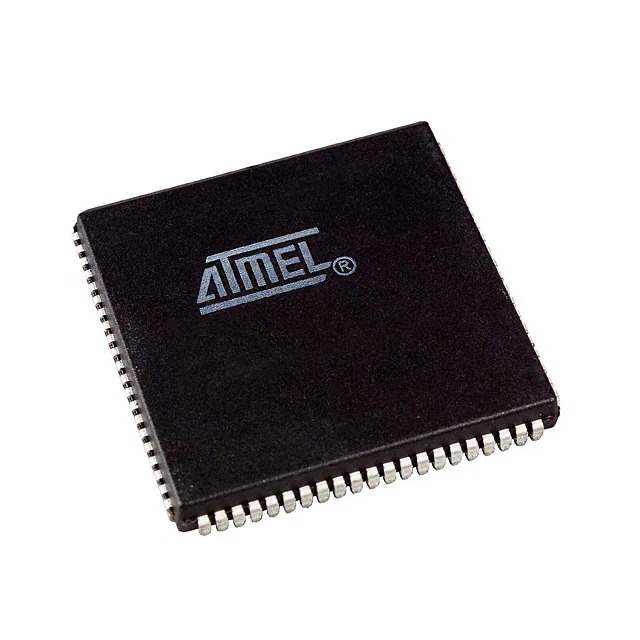

Featuring a 84-pin PLCC (Plastic Leaded Chip Carrier) package, the ATF1508ASVL-20JC84 boasts a 5V supply voltage with a 20ns propagation delay, making it a reliable choice for systems that require fast logic operations without sacrificing power efficiency. The device also supports a wide operating temperature range, ensuring stable performance under various environmental conditions.

With 128 macrocells and 3,584 usable gates, the ATF1508ASVL-20JC84 provides ample logic resources for complex designs. The macrocells are reconfigurable and can be easily programmed to meet the specific needs of your application. Additionally, this CPLD features user-selectable I/O standards, including TTL, CMOS, and LVCMOS compatibility, allowing for seamless integration with a variety of digital components.

The ATF1508ASVL-20JC84 is equipped with an advanced in-system programmable (ISP) feature via JTAG (Joint Test Action Group) interface, enabling designers to update the device firmware post-deployment, which is essential for future-proofing products and simplifying system maintenance. This functionality also allows for rapid prototyping and iterative design processes, significantly reducing the time to market.

Microchip Technology provides comprehensive software support for the ATF1508ASVL-20JC84, including the user-friendly WinCUPL design software, which simplifies the process of designing, simulating, and programming the CPLD. The software's graphical user interface and extensive library of logic components ensure a streamlined development experience for both novice and experienced engineers.

In summary, the ATF1508ASVL-20JC84 CPLD from Microchip Technology is a robust, low-power, and flexible solution for a wide range of digital logic applications. Its reprogrammable nature, coupled with strong software support, makes it an excellent choice for designers looking to create efficient and adaptable electronic systems.
