The ATTINY104-SSFR is a high-performance, low-power AVR 8-bit microcontroller from the renowned manufacturer, Microchip Technology. This compact and versatile microcontroller is designed to deliver efficient operation in a variety of embedded applications. It is particularly well-suited for space-constrained projects due to its small form factor and robust feature set.

Key Features

• Core: The ATTINY104-SSFR is built upon a powerful AVR enhanced RISC architecture that executes most instructions in a single clock cycle. This capability provides the flexibility and speed necessary to handle complex operations efficiently.
• Memory: It comes with 1KB of in-system self-programmable flash, 32B of SRAM, and 64B of EEPROM. This combination of memory options supports a wide range of applications and allows for the flexibility of multiple programming cycles.
• Peripherals: The device includes a variety of integrated peripherals, such as an 8-bit timer/counter with PWM and prescaler, a 10-bit ADC, and an internal oscillator. These built-in features reduce the need for external components, saving both cost and board space.
• Power Efficiency: Designed for power-sensitive applications, the ATTINY104-SSFR operates between 1.8-5.5V, allowing for flexible power supply options and helping to preserve battery life in portable devices.

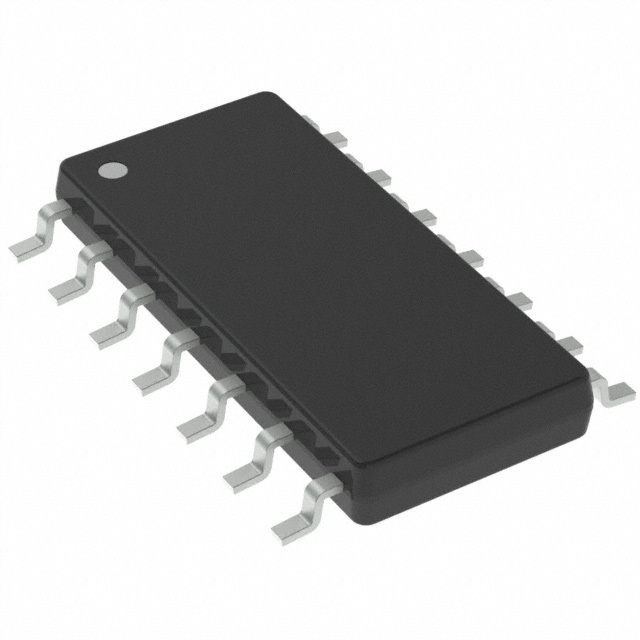

• Packaging: The microcontroller is offered in a space-saving 14-pin SOIC package, making it ideal for applications with limited PCB real estate.
• Temperature Range: It operates within an industrial temperature range of -40°C to 85°C, ensuring reliable performance across diverse environmental conditions.

Applications

The ATTINY104-SSFR is suitable for a broad range of applications, including but not limited to consumer electronics, wearables, Internet of Things (IoT) devices, and industrial control systems. Its low power consumption and small size make it perfect for portable and battery-operated devices, while its robustness and reliability are ideal for harsh industrial environments.

Support and Resources

Microchip Technology provides extensive support and resources for the ATTINY104-SSFR, including datasheets, technical documentation, application notes, and development tools. Engineers can take advantage of Microchip's integrated development environments and programmer hardware to streamline the design and development process.
