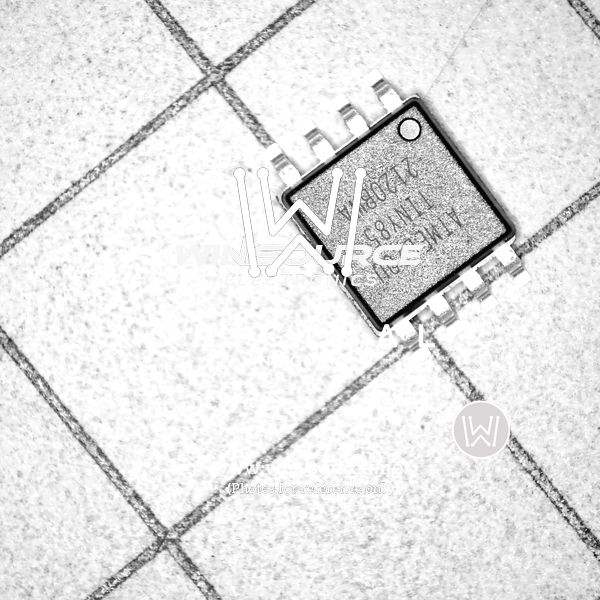

Microchip Technology ATTINY85-20MU Microcontroller

The ATTINY85-20MU from Microchip Technology is a high-performance, low-power AVR 8-bit microcontroller that combines 8KB ISP flash memory, 512-Byte EEPROM, 512-Byte SRAM, 6 general purpose I/O lines, 32 general purpose working registers, one 8-bit timer/counter with compare modes, one 8-bit high-speed timer/counter, USI, internal and external Interrupts, 4-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator, three software selectable power saving modes, and debugWIRE for on-chip debugging. The device operates between 2.7-5.5 volts.

By executing powerful instructions in a single clock cycle, the ATTINY85-20MU achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed. It is designed for use in a wide range of applications including consumer electronics, home automation, sensor networks, and personal health devices.

Key Features:

• High Performance, Low Power AVR® 8-Bit Microcontroller
• Advanced RISC Architecture
• 8KB of In-System Programmable Flash
• 512-Byte EEPROM
• 512-Byte SRAM
• Operating Voltages ranging from 2.7V to 5.5V
• Up to 20 MIPS Throughput at 20MHz
• QFN (MLF) package
• Industrial Temperature Range: -40°C to 85°C

Applications:

• Consumer Electronics
• Home Automation
• Sensor Networks
• Personal Health Devices and Medical Diagnostic Equipment

The ATTINY85-20MU microcontroller is available in a 20-pad 4x4mm QFN/MLF package which is not only space-efficient but also suitable for low-profile and low-power applications. With its robust feature set and capabilities, the ATTINY85-20MU is an ideal choice for designs that require a compact footprint without compromising on performance and reliability.
