Microchip Technology's DSC1122AE2-156.2500T is a high-performance, precision MEMS oscillator designed to deliver exceptional stability and reliability for a wide range of applications. This state-of-the-art component is part of the DSC1122 series, which is renowned for its low jitter and low power consumption, making it an ideal solution for modern electronic systems.

Key Features

• Frequency: The DSC1122AE2-156.2500T has a fixed frequency of 156.2500 MHz, providing a stable timing source for high-speed digital circuits.
• Supply Voltage: It operates at a supply voltage of 2.25V to 3.6V, accommodating a range of power supplies and ensuring compatibility with various logic levels.
• Stability: This oscillator boasts excellent frequency stability, which is crucial for applications where precision timing is key.

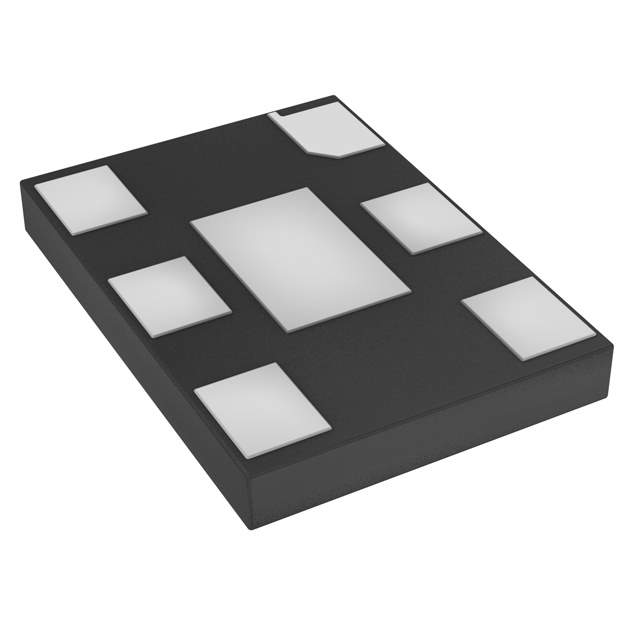

• Form Factor: The device comes in a compact 6-SMD, no lead package, allowing for easy integration into space-constrained designs.
• Output Type: It features an LVDS (Low Voltage Differential Signaling) output, which minimizes electromagnetic interference and supports high data rates.
• Operating Temperature: The DSC1122AE2-156.2500T is designed to operate over an industrial temperature range of -40°C to +85°C, ensuring reliable performance under extreme conditions.

Applications

The DSC1122AE2-156.2500T is suitable for a variety of applications, including but not limited to:

• Networking equipment (routers, switches, etc.)
• High-speed data communication systems
• Storage systems
• Server and data center infrastructure
• Industrial control systems
• Test and measurement equipment

Quality and Reliability

Microchip Technology is committed to providing products that meet the highest standards of quality and reliability. The DSC1122AE2-156.2500T is no exception, undergoing rigorous testing to ensure it meets the demands of critical systems. With its robust design and proven performance, this MEMS oscillator is an excellent choice for designers seeking a dependable timing solution.
