Products specifications

Category Crystals, Oscillators, Resonators - Pin Configurable/Selectable Oscillators
Mfr Microchip Technology
Series DSC60XX
Package Tape & Reel
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Frequency - Output 1 24MHz, 48MHz
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height 0.035" (0.89mm)
Package / Case 4-VFLGA
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1343478-DSC6021MI2A-00A2T
Ultra Librarian 3D Model Ultra Librarian DSC6021MI2A-00A2T CAD Model

Description

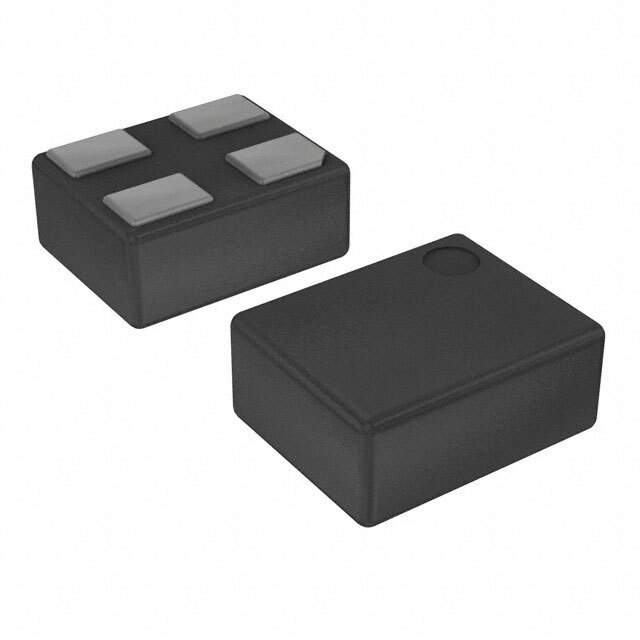

Microchip Technology DSC6021MI2A-00A2T

The DSC6021MI2A-00A2T is a cutting-edge, ultra-miniature MEMS oscillator from the renowned Microchip Technology, designed to deliver exceptional timing solutions for a wide range of electronic applications. This compact and highly reliable component is part of Microchip's DSC6000 family, which is known for providing excellent stability and performance in a small form factor.

Key Features

  • Frequency Range: This device offers a frequency range of 2.3 MHz to 170 MHz, making it versatile for various applications, from microprocessors to networking equipment.
  • Low Power Consumption: With an operating voltage range of 1.71V to 3.63V, it is designed for energy-efficient operations, ideal for battery-powered devices and portable electronics.
  • Stability: The oscillator provides excellent frequency stability, with an inclusive stability of ±25 ppm over the industrial temperature range of -40°C to +85°C.
  • Size: The DSC6021MI2A-00A2T boasts one of the smallest footprints in the industry, with a 2.0 x 1.6 mm package, allowing for space-saving on PCBs and suitability for high-density applications.
  • Output Type: It features a low-power standby mode with fast return to active mode, and a CMOS output waveform, which is compatible with most digital circuits.

Applications

The versatility of the DSC6021MI2A-00A2T makes it an excellent choice for a multitude of applications, including but not limited to:

  • Wearable technology
  • Internet of Things (IoT) devices
  • Consumer electronics
  • Industrial control systems
  • Wireless communications
  • Medical monitoring equipment

With its robust performance and miniature size, the DSC6021MI2A-00A2T from Microchip Technology is a prime solution for designers looking to optimize their systems for both performance and space. Its reliability and precision make it a go-to component for modern electronic designs that demand the best in timing solutions.
