Products specifications

Category Crystals, Oscillators, Resonators - Pin Configurable/Selectable Oscillators
Mfr Microchip Technology
Series DSC60XX
Package Tape & Reel
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Frequency - Output 1 74.1758MHz, 74.25MHz
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height 0.035" (0.89mm)
Package / Case 4-VFLGA
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1344008-DSC6023MI2A-00A7T
Ultra Librarian 3D Model Ultra Librarian DSC6023MI2A-00A7T CAD Model

Description

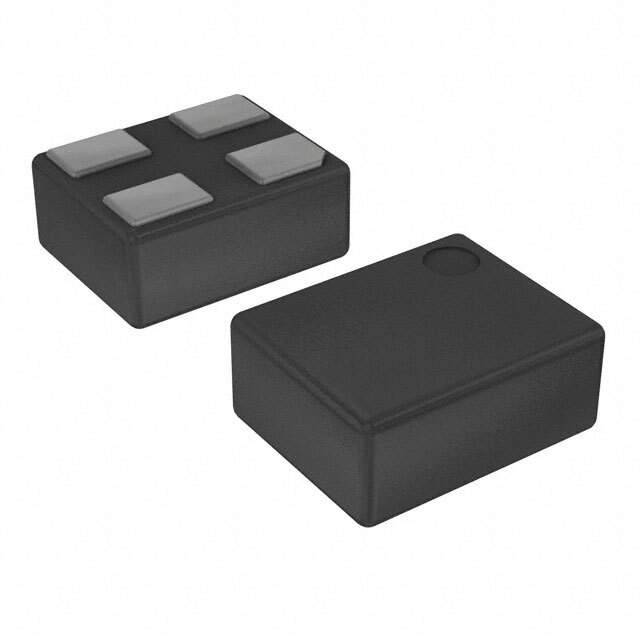

Microchip Technology DSC6023MI2A-00A7T MEMS Oscillator

The DSC6023MI2A-00A7T is a state-of-the-art MEMS (Micro-Electro-Mechanical Systems) oscillator from Microchip Technology, designed to provide a highly stable and reliable timing solution for a wide range of electronic applications. This compact and energy-efficient component is ideal for replacing traditional quartz crystal oscillators, offering improved durability, smaller size, and better resistance to shock and vibration.

Key Features:

  • Frequency Range: The DSC6023 series offers a frequency range of 2.3 MHz to 170 MHz, with this specific model providing a precise frequency of 40 MHz, suitable for various digital applications.
  • Supply Voltage: It operates at a supply voltage (Vdd) of 1.8V ±10%, catering to low-power requirements and making it suitable for battery-powered devices.
  • Stability: The oscillator maintains an excellent frequency stability of ±25 ppm over the industrial temperature range of -40°C to +85°C, ensuring consistent performance under varying conditions.
  • Package: Encased in a compact 4-SMD, no-lead package, the DSC6023MI2A-00A7T has dimensions of 2.5mm x 2.0mm, making it a space-saving option for modern, high-density circuit boards.
  • Output Type: It provides a CMOS output, which is a common requirement for interfacing with standard digital circuits.
  • Low Power Consumption: This MEMS oscillator is designed for low power consumption, which is critical for extending the battery life of portable devices.
  • RoHS Compliant: The device is RoHS compliant, meaning it meets the European Union's restrictions on the use of certain hazardous substances in electrical and electronic equipment.

Applications:

The versatility of the DSC6023MI2A-00A7T MEMS oscillator makes it an excellent choice for a multitude of applications, including but not limited to:

  • Internet of Things (IoT) devices
  • Wearable technology
  • Smartphones and tablets
  • Industrial control systems
  • Wireless communication equipment
  • Medical monitoring devices
  • Automotive electronics

With its robust performance and miniature footprint, the DSC6023MI2A-00A7T from Microchip Technology is an outstanding solution for designers seeking a reliable and compact timing component.
