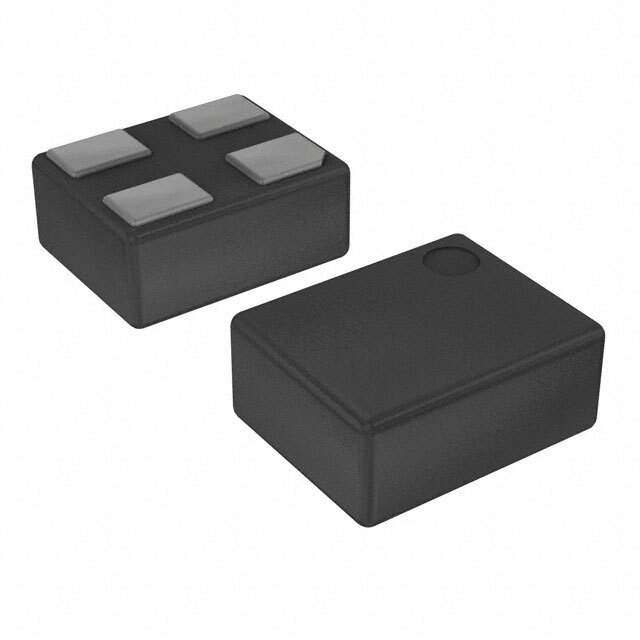

Microchip Technology's DSC6023MI2A-00AD: A High-Performance MEMS Oscillator

Microchip Technology's DSC6023MI2A-00AD is a cutting-edge silicon MEMS (Micro-Electro-Mechanical Systems) oscillator designed to provide a highly stable and reliable clock source for a diverse range of electronic applications. This compact, low-power component is an excellent choice for designers looking to optimize their designs for power and space without compromising on performance.

Key Features

• Frequency Range: The DSC6023 series offers a wide frequency range, and the DSC6023MI2A-00AD model specifically operates at a fixed frequency of 40.000 MHz.
• Package: It comes in an ultra-small 2.5 mm x 2.0 mm package, making it ideal for space-constrained applications.
• Supply Voltage: The device supports a supply voltage range of 1.71V to 3.63V, accommodating various design requirements and ensuring compatibility with both 1.8V and 3.3V power supply systems.
• Stability: The oscillator provides excellent stability with a ±25 ppm frequency tolerance over the industrial temperature range (-40°C to +85°C), ensuring reliable performance under varying environmental conditions.
• Output Type: It features a CMOS/LVTTL compatible output, which is standard and suitable for a wide range of digital applications.
• Low Power Consumption: The DSC6023MI2A-00AD is designed for low power consumption, making it an excellent choice for battery-powered devices and energy-sensitive applications.
• RoHS Compliance: This product is RoHS compliant, adhering to environmental standards and regulations.

Applications

The DSC6023MI2A-00AD is versatile enough to be used in a variety of applications, including but not limited to:

• Wearable Electronics
• Internet of Things (IoT) Devices
• Mobile Phones and Portable Electronics
• Industrial Controls and Automation
• Healthcare and Medical Devices

With its robust performance and small footprint, the DSC6023MI2A-00AD from Microchip Technology is an excellent choice for any application requiring a compact, efficient, and reliable timing solution.
