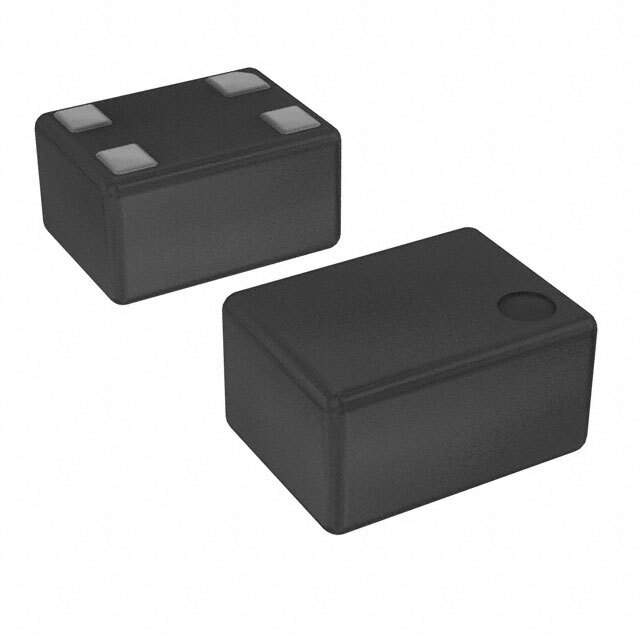

Product Overview: DSC6121HI2A-00AET by Microchip Technology

The DSC6121HI2A-00AET is a high-performance, low-power MEMS oscillator from Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This precision device offers a compact and reliable alternative to traditional quartz crystal oscillators, providing designers with an excellent solution for a wide range of applications.

Key Features

• Frequency Range: The DSC6121 series is designed to operate at a pre-programmed frequency ranging from 1 MHz to 150 MHz, catering to various design requirements.
• Supply Voltage: It operates at a supply voltage of 1.8V to 3.3V, making it versatile for different power environments and ensuring energy-efficient operation.
• Stability and Accuracy: The oscillator provides excellent frequency stability and accuracy, which is vital for applications requiring precise timing.
• Size: The ultra-small 2.5x2.0 mm package is ideal for space-constrained applications, allowing for more compact and integrated designs.
• Output Type: It features a CMOS/LVPECL/LVDS output, offering compatibility with a wide range of digital circuits.
• Temperature Range: The device is operational over an extended industrial temperature range of -40°C to +85°C, suitable for harsh environments.

Applications

The versatility of the DSC6121HI2A-00AET makes it an excellent choice for various applications, including IoT devices, wearables, wireless communication, portable electronics, and any system where space and power consumption are critical considerations. Its robust performance also makes it suitable for industrial and automotive applications where temperature extremes and high reliability are required.

Quality and Reliability

Microchip Technology is known for its commitment to quality, and the DSC6121HI2A-00AET is no exception. It is designed to meet stringent quality standards, providing a highly reliable timing solution. With its integrated MEMS resonator, this oscillator offers improved shock and vibration resistance compared to traditional quartz-based devices, ensuring stable performance in dynamic conditions.
