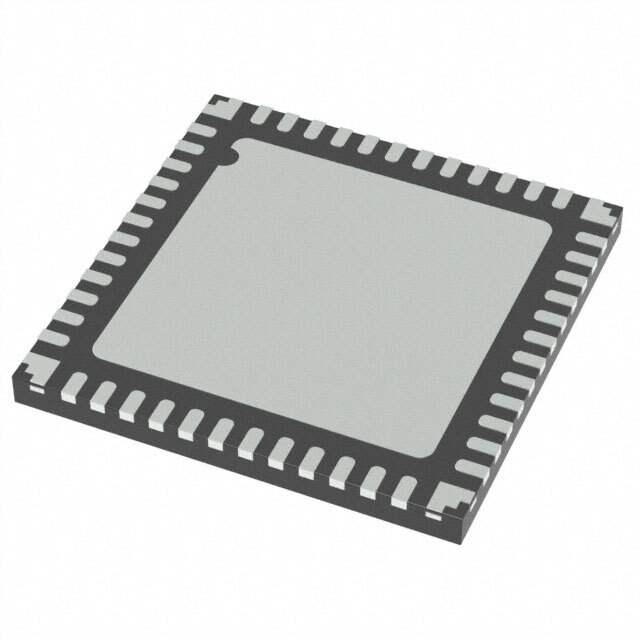

Microchip Technology's DSPIC33CK64MP205T-I/M4

The DSPIC33CK64MP205T-I/M4 is an advanced digital signal controller (DSC) from Microchip Technology, designed to deliver the perfect blend of power and performance for a wide array of applications. This DSC is part of the dsPIC33CK family, which is known for its high-speed digital signal processing capabilities, making it an ideal choice for applications that require complex computations and precise control, such as motor control, power conversion, and sensor processing.

At the heart of the DSPIC33CK64MP205T-I/M4 lies a 16-bit dsPIC33CK CPU core, which can run at speeds up to 100 MHz. It boasts 64 KB of flash memory and 8 KB of RAM, providing ample space for your application code and data. The device operates at a voltage range of 3.0V to 3.6V, with an industrial temperature range from -40°C to +85°C, ensuring reliable performance under harsh conditions.

This DSC features an array of integrated peripherals that enhance its functionality. It includes advanced analog features such as a 12-bit analog-to-digital converter (ADC) with up to 500 KSPS, multiple comparators, and a Digital Signal Modulator (DSM) for improved power supply control. For communication, it offers several options including UART, SPI, and I2C interfaces, along with CAN bus support for robust industrial networking.

For precise timing and control, the DSPIC33CK64MP205T-I/M4 is equipped with multiple 16-bit and 32-bit timers, as well as PWM modules that are ideal for motor control applications. The device also supports a Quadrature Encoder Interface (QEI) for position sensing in motion control systems.

With its onboard programmable high-speed PWMs, flexible serial communication interfaces, and robust set of control-oriented features, the DSPIC33CK64MP205T-I/M4 is a highly capable microcontroller for demanding applications. Additionally, it is supported by Microchip's MPLAB development ecosystem, which includes software tools, development boards, and a vast resource library, simplifying the development process and accelerating time to market.

Whether you're designing an advanced motor control system, a power-efficient converter, or a sophisticated sensor interface, the DSPIC33CK64MP205T-I/M4 offers the performance, versatility, and reliability to meet the needs of your next high-performance embedded design.
