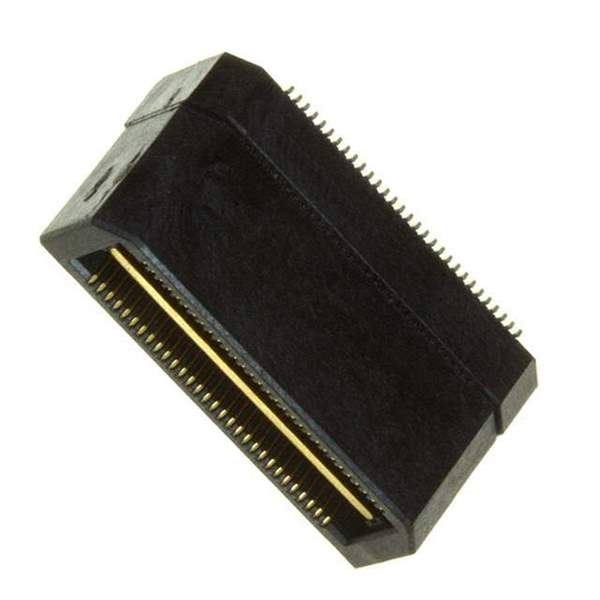

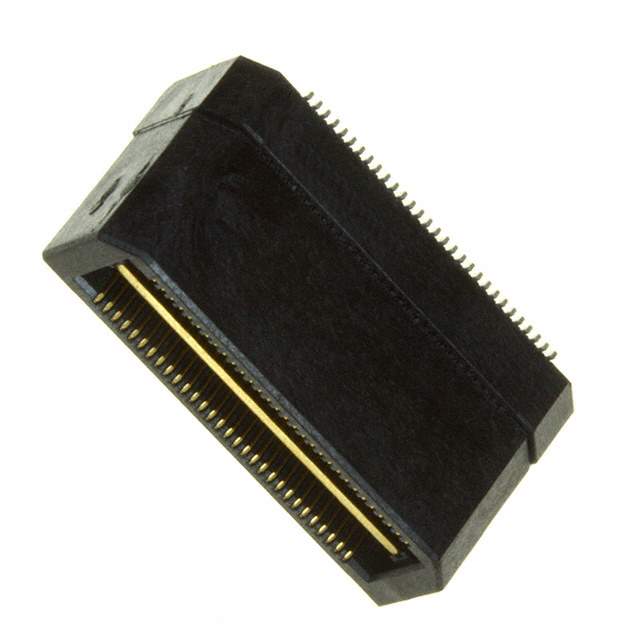

Same model may have multiple batches, images only for reference.

QTH-030-03-C-D-A

Name: QTH-030-03-C-D-A
Brand: Samtec Inc.
SKU: 813079
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	QTH-030-03-C-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR 60POS SMD GOLD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Bulk
Connector Type	Header, Outer Shroud Contacts
Number of Positions	60
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Style	SMD
Features	Board Guide, Ground Bus (Plane)
Contact Finish	Gold
Contact Finish Thickness	50.0μin (1.27μm)
Mated Stacking Heights	11mm
Height Above Board	0.404" (10.27mm)
Manufacturer Pack Quantity	1
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	813082-QTH-030-03-C-D-A
Ultra Librarian 3D Model	Ultra Librarian QTH-030-03-C-D-A CAD Model

Alternative Products

Description

The QTH-030-03-C-D-A is a 60-position header connector from Samtec Inc.

Pitch: 0.020 inches
Package: Bulk
Mounting Type: Surface Mount
Contact Type: Outer Shroud
Rows: Two
Contact Finish: Gold
Contact Finish Thickness: 50.0μin
Height Above Board: 0.404 inches
Mated Stacking Height: 11mm
Features: Board Guide, Ground Bus
