dSPIC33FJ256GP710A-E/PT Microcontroller Overview

The dSPIC33FJ256GP710A-E/PT is a high-performance 16-bit Digital Signal Controller (DSC) from Microchip Technology, designed to offer the best of both worlds: the processing power of a DSP and the functionality of a microcontroller. This makes it an ideal choice for applications that require complex signal processing as well as control tasks, such as automotive applications, industrial control systems, and communication devices.

Key Features

• Core: The device features a 16-bit modified Harvard architecture that allows it to run at a maximum speed of 40 MIPS (million instructions per second), providing the computational power necessary for demanding applications.
• Program Memory: It comes with 256 KB of flash memory, which provides ample space for complex applications and algorithms.
• RAM: The controller is equipped with 30 KB of RAM, allowing for efficient data handling and manipulation.
• I/O Pins: The dSPIC33FJ256GP710A-E/PT offers 85 input/output pins, which are highly configurable and include support for digital communication protocols such as SPI, I2C, and UART.
• Analog Features: It includes 16 channels of 10-bit Analog-to-Digital Converters (ADCs) for interfacing with analog sensors and devices.
• Timers and PWM: The device has multiple timers, including 16-bit and 32-bit timers, as well as 8 motor control PWM outputs, which are essential for precise timing and control tasks.
• Temperature Range: It operates within an extended industrial temperature range, making it robust for harsh environments.

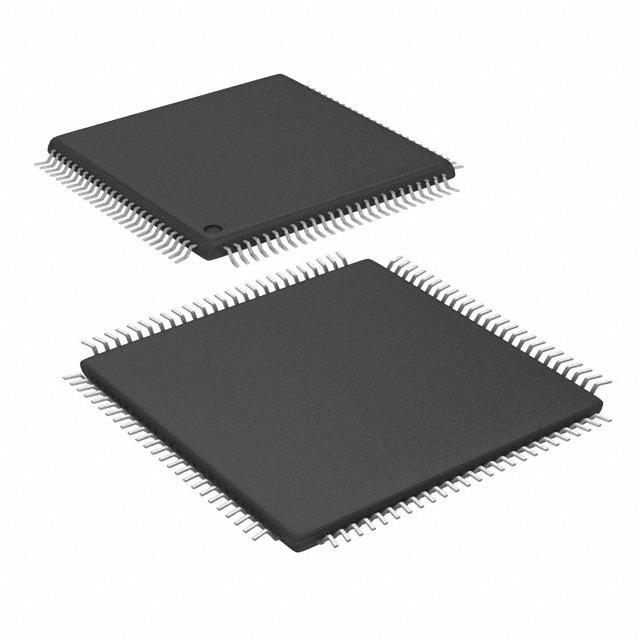

• Package: The microcontroller is available in a 100-pin TQFP package, which is suitable for surface mount technology and compact PCB designs.

Applications

The dSPIC33FJ256GP710A-E/PT is versatile and can be used in a variety of applications, including:

• Motor Control and Power Conversion
• Audio and Voice Processing
• Advanced Sensing and Monitoring Systems
• Automotive Systems
• Industrial Automation
• Communication Systems

With its powerful DSP capabilities, extensive memory, and flexible I/O options, the dSPIC33FJ256GP710A-E/PT from Microchip Technology is a solid choice for designers looking to create advanced and reliable embedded systems.
