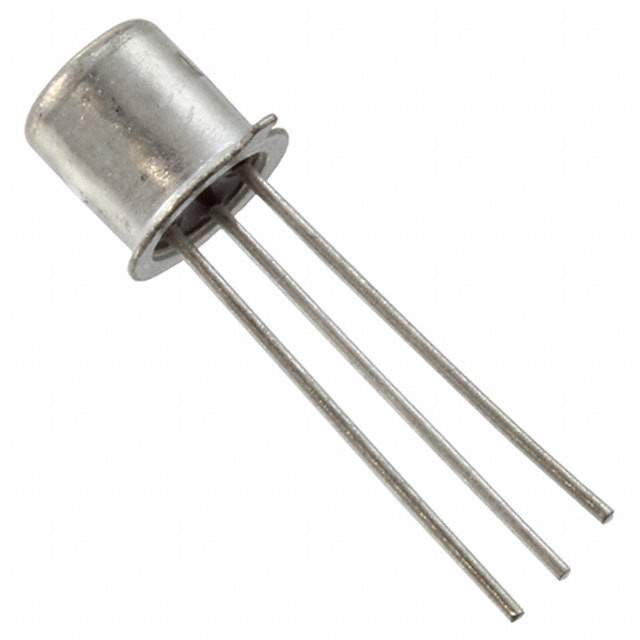

Product Overview: JANTX2N2369A by Microchip Technology

The JANTX2N2369A is a high-quality, military-grade NPN bipolar junction transistor (BJT) designed and manufactured by Microchip Technology, a leading provider of microcontroller, mixed-signal, analog, and Flash-IP solutions. This transistor is specifically crafted to meet the stringent requirements of aerospace and defense applications, ensuring reliability and performance under extreme conditions.

Key Features

• High Reliability: The JANTX2N2369A is built to meet or exceed the standards set by the Joint Army-Navy Specifications (JAN), which indicates a high level of reliability suitable for military applications.
• Robust Performance: With the ability to operate in harsh environments, this transistor is designed to withstand high temperatures and is resistant to mechanical shocks and vibrations.
• Versatile Use: This BJT can be used in a variety of electronic circuits, including amplifiers, switching devices, and other applications requiring a fast switching device.
• Electrical Characteristics: The device exhibits excellent electrical properties, such as a minimum DC current gain (hFE) and low saturation voltage, providing efficient operation in circuits.

Applications

The JANTX2N2369A is ideal for mission-critical applications where failure is not an option. Its typical applications include:

• Communication systems
• Avionics and aerospace electronics
• Power regulation modules
• High-reliability consumer electronics

Technical Specifications

Parameter Value Transistor Polarity NPN Collector-Emitter Voltage (VCEO) 15V Collector-Base Voltage (VCBO) 60V Emitter-Base Voltage (VEBO) 6V Collector Current (IC) 200mA Power Dissipation (PD) 360mW Operating Junction Temperature Range -65°C to +200°C

With its robust design and reliable performance, the JANTX2N2369A from Microchip Technology is an excellent choice for applications demanding the highest level of quality and durability.
