Products specifications

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 51 Weeks
Features Ethernet Controller 10/100 Base-FX/T/TX PHY SPI Interface 64-QFN (9x9)
Manufacturer Microchip Technology
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Package 64-VFQFN Exposed Pad

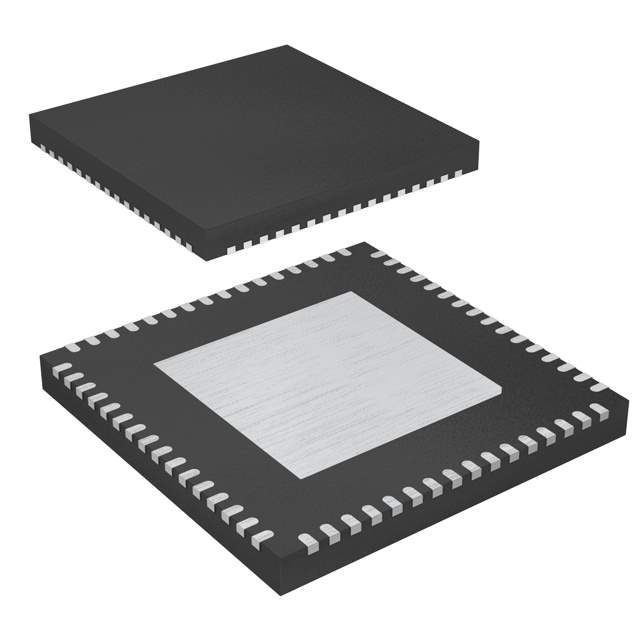

Case / Package 64-QFN (9x9)
Family Name LAN9252
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 922700-LAN9252TV/ML
Ultra Librarian 3D Model Ultra Librarian LAN9252TV/ML CAD Model

Description

Microchip Technology's LAN9252TV/ML: A High-Performance EtherCAT Slave Controller

The LAN9252TV/ML from Microchip Technology is a standout EtherCAT slave controller that is designed to serve the demanding requirements of industrial automation and process control applications. With its highly integrated design, this device is engineered to deliver exceptional performance, reliability, and ease of integration, making it an ideal choice for developers looking to implement EtherCAT connectivity in their systems.

Key Features of the LAN9252TV/ML:

  • High-Performance Architecture: The LAN9252TV/ML is built with a dual 10/100 Mbps Ethernet PHYs which enables fast and reliable communication, ensuring minimal latency and high data throughput for EtherCAT communication.
  • Flexible Interface Options: This device supports a variety of host interfaces including SPI/SQI, High-Speed UART, and Parallel, providing versatility for different system designs and requirements.
  • Compact Package: Encased in a compact QFN package, the LAN9252TV/ML is designed for space-constrained applications without compromising on functionality or performance.
  • Extended Temperature Range: The device operates over an industrial temperature range, making it suitable for harsh environments typically found in industrial settings.
  • Integrated PHYs: With integrated Ethernet PHYs, the LAN9252TV/ML simplifies design and reduces external component count, leading to cost savings and a smaller PCB footprint.
  • Comprehensive Development Support: Microchip Technology provides extensive support for developers, including reference designs, development tools, and software stacks, to accelerate the product development process.

The LAN9252TV/ML is not just powerful but also designed with a focus on efficiency and integration. It supports multiple digital I/Os and analog inputs, which are crucial for the precise control and monitoring tasks required in industrial automation. Additionally, it comes with a set of advanced features such as SyncManager channels and FMMU support that enable flexible and configurable mapping of process data, which is essential for complex automation tasks.

Whether you are developing advanced robotic systems, motion controllers, or any other EtherCAT-enabled devices, the LAN9252TV/ML provides a robust and high-performance solution that can meet the stringent requirements of modern industrial networks.
