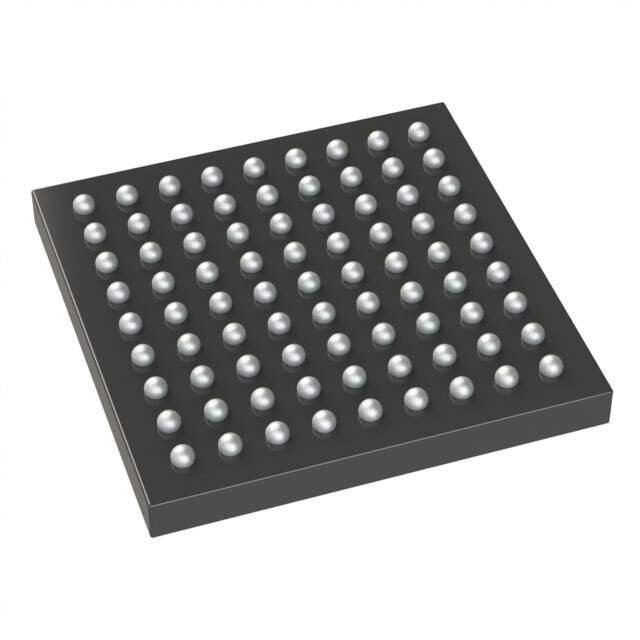

Win Source Part Number WS1324567-MAX24305EXG2
Category Integrated Circuits (ICs) >Clock/Timing >Application Specific Clock/Timing
Manufacturer Microchip Technology
Packaging Tray
Part Status Active
PLL Yes
Main Purpose Ethernet, SONET/SDH
Input CMOS, TTL, Crystal
Output CML, CMOS, TTL
Number of Circuits 1
Ratio - Input and Output 3:5
Ultra Librarian 3D Model Ultra Librarian MAX24305EXG2 CAD Model

Description

The MAX24305 and MAX24310 are flexible, highperformance timing and clock synthesizer ICs that include a DPLL and two independent APLLs. When locked to one of two input clock signals, the device performs any-to-any frequency conversion. From any input clock frequency 1Hz to 750MHz the device can produce frequency-locked APLL output frequencies up to 750MHz and as many as 10 output clock signals that are integer divisors of the APLL frequencies. Input jitter can be attenuated by an internal low-bandwidth DPLL. The DPLL also provides truly hitless switching between input clocks and a high-resolution holdover capability. Input switching can be manual or automatic. Using only a low-cost crystal or oscillator, the device can also serve as a frequency synthesizer IC. Output jitter is typically 0.18 to 0.3ps RMS for an APLL-only integer multiply and 0.25 to 0.4ps RMS for APLL-only fractional multiply or DPLL+APLL operation.
