The MCP6L01T-E/LT is a high-performance, single-channel operational amplifier (op-amp) from Microchip Technology, designed to offer a balance of low power consumption and high precision. This op-amp is ideal for a wide range of applications, including analog filters, sensor amplifiers, and low-power applications.

Key Features

• Low Power Consumption: With an operating voltage range of 2.1V to 5.5V, the MCP6L01T-E/LT is optimized for low-power operations, making it suitable for battery-powered devices and energy-saving applications.
• High Precision: The device provides a Gain Bandwidth Product (GBWP) of 1 MHz, allowing for precise signal amplification with a minimal phase shift.
• Extended Temperature Range: It operates within an industrial temperature range of -40°C to +125°C, ensuring reliable performance in harsh environmental conditions.
• Rail-to-Rail Output: The op-amp features a rail-to-rail output swing, which maximizes the dynamic range within the given supply voltage.
• Single-Supply Operation: The ability to operate with a single power supply simplifies the design and reduces the complexity of the power supply architecture.

Applications

The versatility of the MCP6L01T-E/LT makes it an excellent choice for a variety of applications, including:

• Portable Instrumentation
• Analog Filters
• Data Acquisition Systems
• Power Supply Control
• Sensor Amplifiers
• Medical Monitoring Devices

Package and Availability

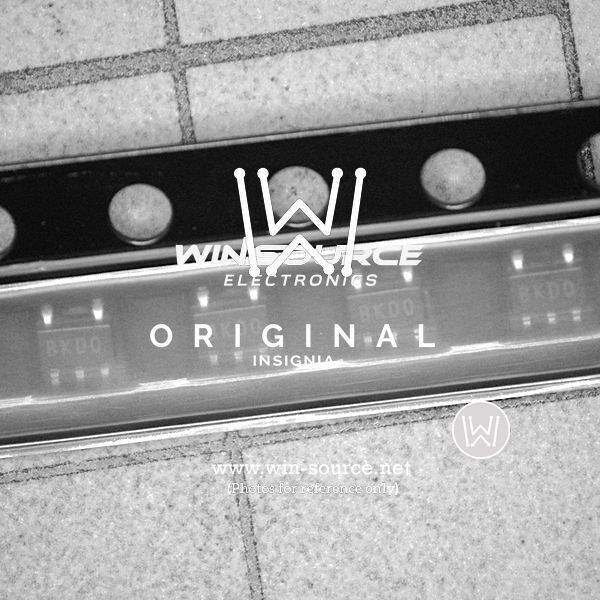

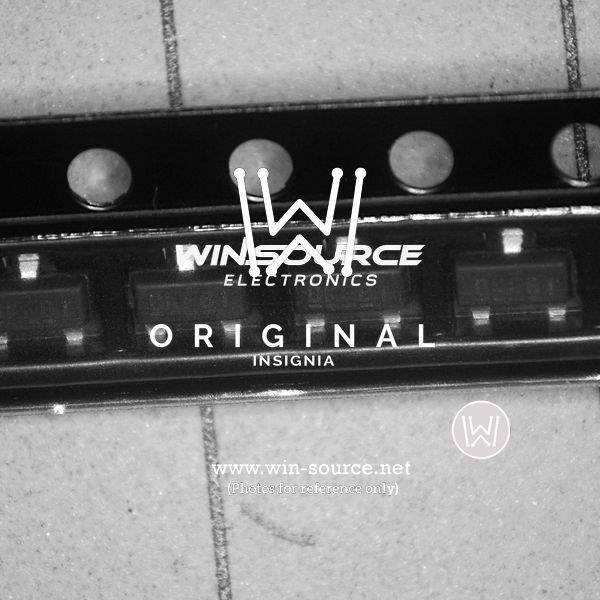

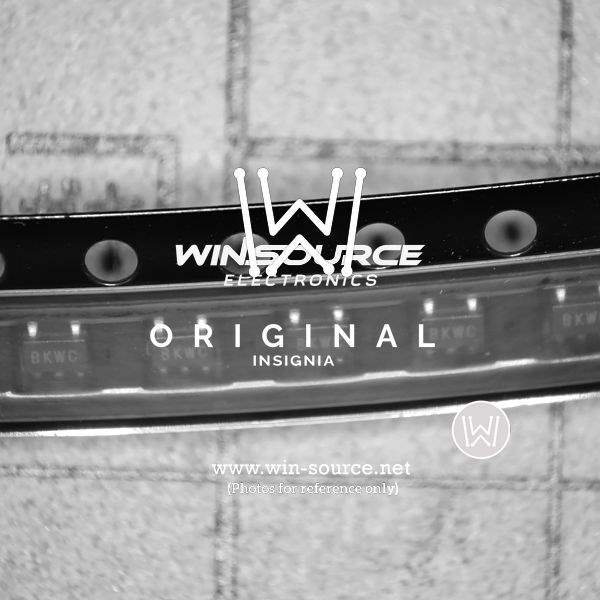

The MCP6L01T-E/LT is available in a 5-pin SOT-23 package, which provides a compact footprint for space-constrained applications. This operational amplifier is part of Microchip's commitment to providing reliable and high-quality analog solutions, and it is available for purchase through Microchip's extensive distribution network.
