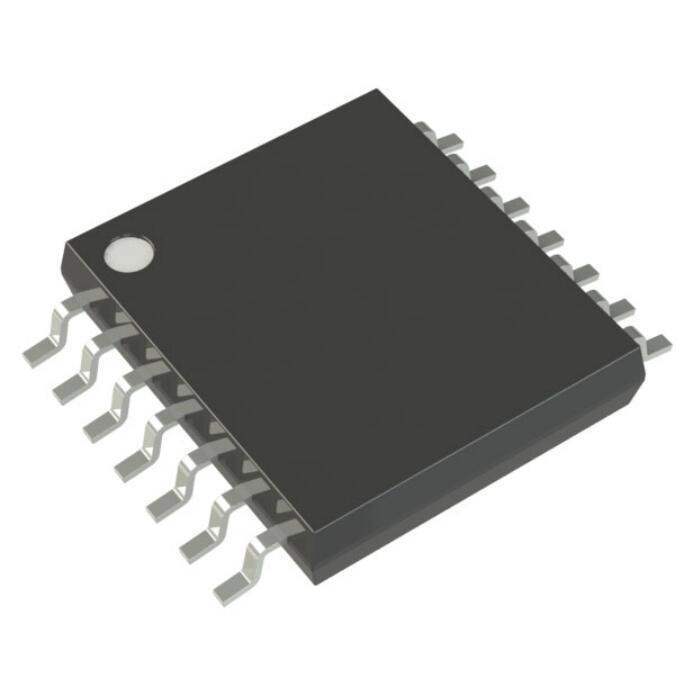

Product Overview: MCP6V99T-E/ST

The MCP6V99T-E/ST is a highly precise operational amplifier (op-amp) designed and manufactured by Microchip Technology, a leading provider of microcontroller, mixed-signal, analog, and Flash-IP solutions. This op-amp is part of Microchip's family of products that offer a combination of high accuracy, low power consumption, and enhanced features to meet the needs of a wide range of applications.

Key Features

• Amplifier Type: Zero-Drift
• Supply Voltage: Operates from a single supply voltage ranging from 2.3V to 5.5V, making it suitable for battery-operated devices and systems with varying power supplies.
• Gain Bandwidth Product: Offers a gain bandwidth product of 2 MHz, allowing it to handle a wide range of frequencies without significant loss of signal fidelity.
• Quiescent Current: Features a low quiescent current of 60 µA (typical), which helps to minimize power consumption and extend battery life in portable applications.
• Temperature Range: Designed to operate over the industrial temperature range of -40°C to +125°C, ensuring reliability and performance in harsh environments.
• Package: Available in a 6-pin TDFN-8 package, which is compact and suitable for space-constrained applications.

Applications

The MCP6V99T-E/ST is versatile and can be used in a variety of applications, including:

• Precision analog processing
• Temperature sensing and compensation
• Portable instrumentation
• Medical devices
• Automotive systems
• Power supply control

Advantages

This op-amp is designed to offer excellent DC precision with a maximum input offset voltage of 8 µV and a maximum input bias current of 1 pA. The zero-drift feature ensures that the offset voltage does not change over time or with variations in temperature, which is crucial for precision applications. Additionally, the MCP6V99T-E/ST provides a high common-mode rejection ratio (CMRR) and power supply rejection ratio (PSRR), which enhances the stability and accuracy of the amplifier in the presence of noise and fluctuating power supplies.

Overall, the MCP6V99T-E/ST from Microchip Technology is a robust and reliable choice for designers who require an operational amplifier with high precision, low power, and stability across a broad range of operating conditions.
