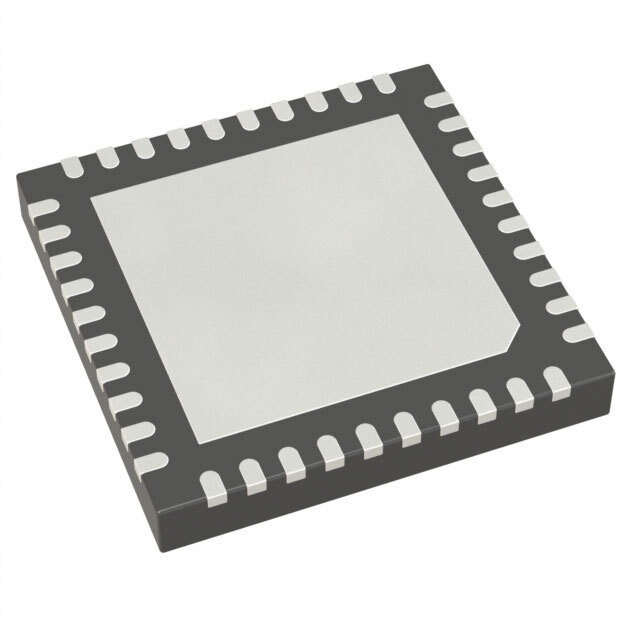

Same model may have multiple batches, images only for reference.
MCP8026-115H/MP Microchip Technology – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MCP8026-115H/MP

Part No MCP8026-115H/MP
Manufacturer Microchip Technology
Catalog PMIC - Motor Drivers, Controllers
Description Motor Driver NMOS, PMOS PWM 40-QFN (5x5)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Microchip Technology
Packaging Tube
Motor Type - AC, DC Brushless DC (BLDC)
Function Controller - Commutation, Direction Management
Output Configuration Pre-Driver - Half Bridge (3)
Interface PWM
Technology NMOS, PMOS
Applications General Purpose
Voltage - Supply 6V ~ 28V
Temperature Range - Operating -40°C ~ 150°C (TA)
Mounting Type Surface Mount
Package / Case 40-VFQFN Exposed Pad
Supplier Device Package 40-QFN (5x5)
Base Product Number MCP8026
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0060
Win Source Part Number 1481277-MCP8026-115H/MP
Ultra Librarian 3D Model Ultra Librarian MCP8026-115H/MP CAD Model
