Products specifications

Category Integrated Circuits (ICs)>Interface - Sensor and Detector Interfaces
Mfr Microchip Technology
Package Tape & Reel (TR)
Type Thermocouple to Digital Converter
Input Type Thermocouple
Output Type I2C
Current - Supply 300 µA
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 20-VQFN Exposed Pad
Supplier Device Package 20-MQFN (5x5)
Base Product Number MCP9600
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 3,300
Win Source Part Number 976089-MCP9600T-E/MX
Ultra Librarian 3D Model Ultra Librarian MCP9600T-E/MX CAD Model

Description

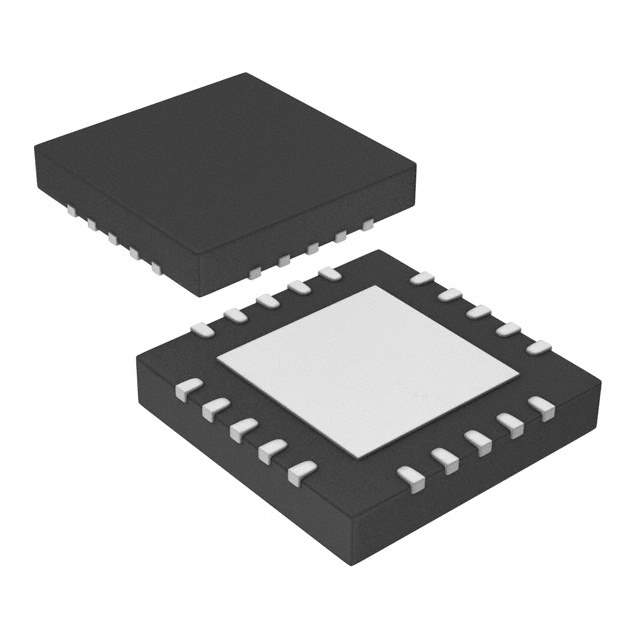

Microchip Technology MCP9600T-E/MX Thermocouple EMF to Temperature Converter

The MCP9600T-E/MX is a sophisticated thermocouple-to-digital converter integrated circuit from Microchip Technology that offers a complete temperature monitoring solution. This high-precision IC is designed to work with any thermocouple type, making it a versatile choice for a wide range of temperature sensing applications.

Featuring an integrated cold-junction compensation, the MCP9600T-E/MX can directly connect to a thermocouple and provide accurate temperature readings without the need for additional components or complex calibration. It supports standard thermocouple types (K, J, T, N, S, E, B, and R) and provides a temperature resolution of 0.0625°C, ensuring high precision in temperature measurement.

The device offers multiple digital interfaces for communication, including I2C, which allows for easy integration into existing systems. It is housed in a space-saving 20-pin QFN package, making it ideal for applications where space is at a premium.

The MCP9600T-E/MX also boasts a robust set of features such as four programmable temperature alert outputs, which can be used to detect multiple temperature zones and trigger appropriate system responses. This makes it particularly useful in safety-critical applications like overheating protection in consumer electronics or industrial equipment.

The operating voltage range of 2.7V to 5.5V allows the MCP9600T-E/MX to be used in both 3.3V and 5V systems, providing flexibility in power supply design. Its operating temperature range from -40°C to +125°C ensures reliable performance in extreme environments.

In summary, the MCP9600T-E/MX from Microchip Technology is a fully integrated thermocouple-to-digital solution that simplifies the design of temperature sensing systems. Its precision, flexibility, and ease of use make it an excellent choice for a variety of applications, from industrial control systems to consumer electronics.
