Products specifications

Category Integrated Circuits (ICs)>Interface - Controllers
Mfr Microchip Technology
Package Tape & Reel (TR)
Protocol USB
Function Controller
Voltage - Supply 4.5V ~ 5.5V
Current - Supply 16µA
Temperature Range - Operating 0°C ~ 70°C
Package / Case 16-SSOP (0.154", 3.90mm Width)
Supplier Device Package 16-QSOP
Base Product Number MIC2012
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Other Names MIC2012-1PZQSTR,MIC2012-1PZQS TR-ND,MIC2012-1PZQSTR-ND,MIC2012-1PZQS TR
Standard Package 2,500
Win Source Part Number 996707-MIC2012-1PZQS-TR
Ultra Librarian 3D Model Ultra Librarian MIC2012-1PZQS-TR CAD Model

Description

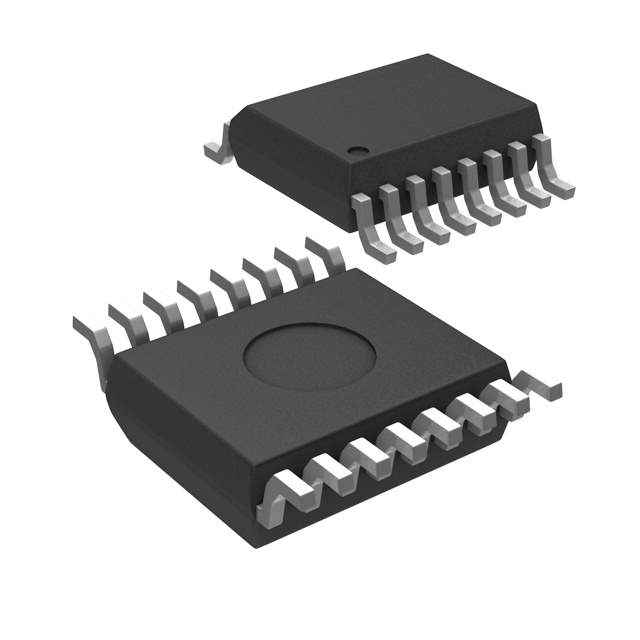

MIC2012-1PZQS-TR from Microchip Technology

The MIC2012-1PZQS-TR is a sophisticated integrated circuit from Microchip Technology, designed for power management applications. This device is part of Microchip's extensive portfolio of power distribution switches that are engineered to provide a reliable and efficient solution for managing power in electronic systems.

Key Features

  • Integrated Current Limiting: The MIC2012-1PZQS-TR features an accurate and programmable current limit, which helps to protect the device and downstream components from excessive current that could cause damage.
  • Thermal Protection: With built-in thermal shutdown, the device ensures safe operation by turning off the output when the die temperature exceeds a safe threshold, thereby preventing overheating.
  • Fast Response Time: The device offers a quick response to fault conditions, ensuring that your system is protected promptly in the event of a short circuit or overcurrent situation.
  • Low Power Consumption: Designed for energy efficiency, the MIC2012-1PZQS-TR consumes minimal power, making it suitable for battery-powered applications.
  • High Side Switch: As a high side switch, it allows for the control of power to a load without disrupting the ground plane, which can be beneficial in reducing noise and simplifying system design.

Applications

The MIC2012-1PZQS-TR is versatile and can be used in a variety of applications, including:

  • USB hubs and peripherals
  • Portable electronic devices
  • Hot-swap and plug-and-play applications
  • Power distribution systems

Quality and Reliability

Microchip Technology is known for its commitment to quality, and the MIC2012-1PZQS-TR is no exception. It is manufactured to the highest standards to ensure reliable performance in the field. The device is available in a small package, making it ideal for space-constrained applications.

Ordering Information

The MIC2012-1PZQS-TR is available in tape and reel packaging, facilitating easy integration into automated manufacturing processes. Its surface-mount design allows for efficient assembly in high-volume production environments.
