Product Overview: MIC24056YJL-TR from Microchip Technology

The MIC24056YJL-TR, manufactured by Microchip Technology, is a high-efficiency, synchronous step-down regulator designed for a wide range of applications. This integrated power solution is capable of delivering up to 6A of continuous current at output voltages as low as 0.7V, making it an ideal choice for powering advanced microprocessors, FPGAs, and other digital ICs that require a stable and efficient power supply.

Key Features

• High Efficiency: With its synchronous buck topology, the MIC24056YJL-TR provides efficient power conversion, which reduces energy loss and heat generation, thereby improving system reliability and performance.
• Wide Input Voltage Range: The device supports a broad input voltage range from 4.5V to 19V, accommodating various power sources and ensuring versatility across different platforms and applications.
• Adjustable Output Voltage: Users can set the output voltage from 0.7V to 5.5V, providing flexibility to meet the needs of specific circuit designs.

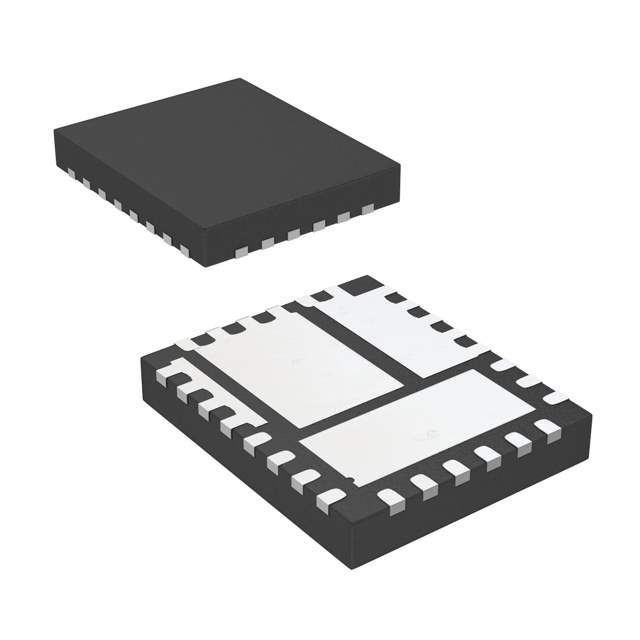

• Compact Package: The MIC24056YJL-TR comes in a compact 24-pin 4mm x 4mm QFN package, which minimizes the footprint on the PCB and is suitable for space-constrained applications.
• Thermal Management: With an integrated thermal shutdown feature, the device protects itself from overheating, thus ensuring safe operation under various conditions.
• Protection Features: The regulator includes under-voltage lockout (UVLO), over-current protection (OCP), and over-temperature protection (OTP), safeguarding the device and the system from potential damage due to abnormal operating conditions.

Applications

The MIC24056YJL-TR is suitable for a wide array of applications, including but not limited to:

• Telecommunications equipment
• Networking and data communication devices
• Industrial systems
• Enterprise computing solutions
• Consumer electronics

In summary, the MIC24056YJL-TR from Microchip Technology is a versatile, high-performance step-down regulator that offers efficiency, a wide input voltage range, and robust protection features, making it an excellent choice for designers seeking a reliable power management solution.
