The MIC29302WU is a robust, high-current, low-dropout voltage regulator from Microchip Technology, designed to provide a regulated output with low voltage drop under a wide range of operating conditions. With its impressive specifications and performance, this LDO is suitable for a variety of applications, including but not limited to, personal computers, peripherals, battery-powered devices, and other electronic equipment.
Key Features
- High Current Capability: The MIC29302WU can deliver up to 3A of continuous output current, making it suitable for high-power applications.
- Adjustable Output: It offers an adjustable output voltage from 1.24V to 26V, which allows for high flexibility in circuit design.
- Low Dropout Voltage: The regulator boasts a low dropout voltage, typically 450mV at full load, which enhances efficiency and allows operation over a wider range of input voltages.
- Thermal Overload Protection: The device includes built-in thermal overload protection that shuts down the regulator should the internal temperature exceed safe operating limits.
- Short Circuit Protection: It also features short circuit protection to safeguard the regulator and the load from damage due to faults.
- Wide Operating Temperature Range: The MIC29302WU operates over an industrial temperature range from -40°C to +125°C, suitable for harsh environments.
Product Specifications
Parameter
Value
Output Current
3A
Adjustable Output Voltage
1.24V to 26V
Dropout Voltage
450mV @ 3A
Operating Temperature Range
-40°C to +125°C
Package Type
TO-263 (D2PAK)

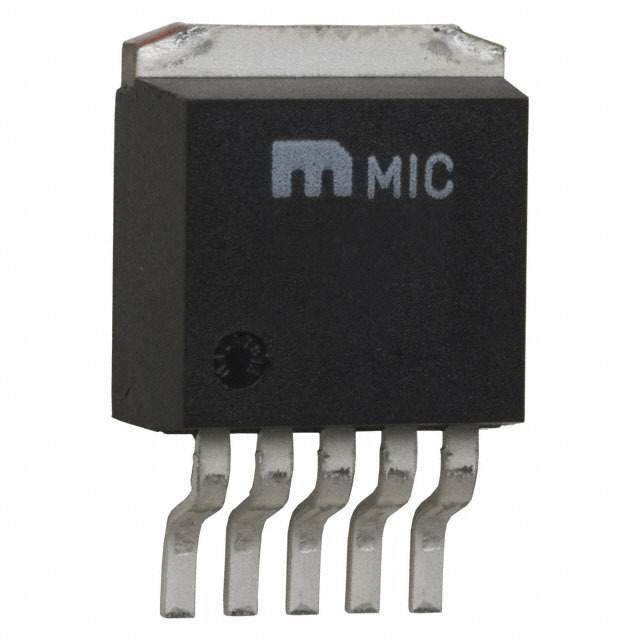

The MIC29302WU is available in a TO-263 (D2PAK) package, which is known for its ability to handle high-power dissipation. This, combined with its advanced features, makes the MIC29302WU an excellent choice for designers seeking a reliable and versatile LDO voltage regulator for their demanding applications.
