Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Cut Reel
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 6
Operating Input Voltage(Min) 6V
Maximum Supply Voltage 40V
Channel Output Current 30mA
Frequency 1.2MHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 24-MLF (4x4)
Win Source Part Number 111336-MIC3263YML-TR
Ultra Librarian 3D Model Ultra Librarian MIC3263YML-TR CAD Model

Description

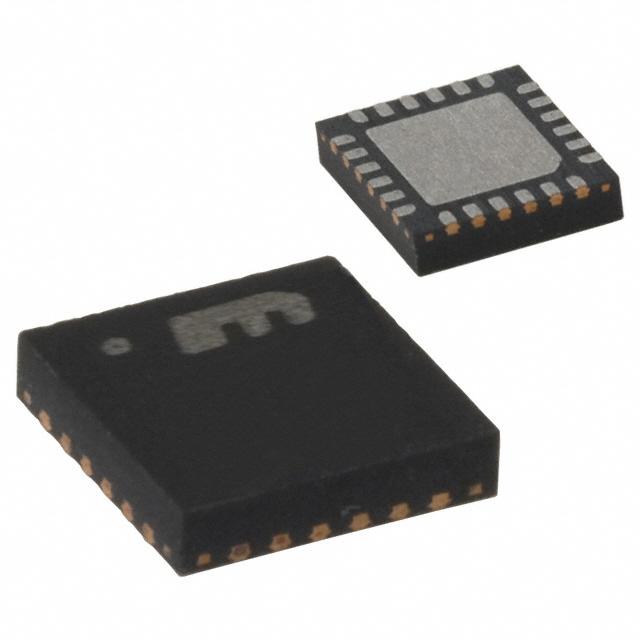

Microchip Technology MIC3263YML-TR

The MIC3263YML-TR from Microchip Technology is a highly integrated, efficient, and versatile LED driver that caters to a broad range of applications. This advanced piece of technology is designed to drive high-brightness LEDs with precision and reliability, making it an ideal choice for lighting solutions in automotive, industrial, and consumer electronics sectors.

Key Features

  • Adjustable Output Current: The MIC3263YML-TR allows for precise control over the LED current, enabling users to set the desired brightness level for their LED applications.
  • High Efficiency: With an efficiency rate that can reach up to 95%, this LED driver minimizes power loss and ensures optimal performance, making it suitable for battery-powered and energy-sensitive systems.
  • Integrated Switch: The device includes an internal switch, which simplifies the circuit design and reduces external component requirements, leading to a more compact and cost-effective solution.
  • Dimming Capability: It supports both analog and pulse-width modulation (PWM) dimming methods, providing versatility in controlling the light output and enabling energy-saving features.
  • Thermal Protection: The MIC3263YML-TR is equipped with thermal shutdown protection, safeguarding the device and the LEDs from potential damage due to overheating.
  • Compact Package: Packaged in a space-saving 10-pin 3x3mm MLF® package, this LED driver is suitable for applications where board space is at a premium.

Applications

  • Automotive interior and exterior lighting
  • LED backlighting for LCD displays
  • Portable and handheld devices
  • General illumination and architectural lighting
  • Industrial and emergency lighting

The MIC3263YML-TR LED driver is a testament to Microchip Technology's commitment to providing innovative, high-quality components that meet the evolving needs of the electronics industry. With its robust feature set and compact design, it offers designers a powerful tool to create efficient, reliable, and high-performance LED lighting systems.
