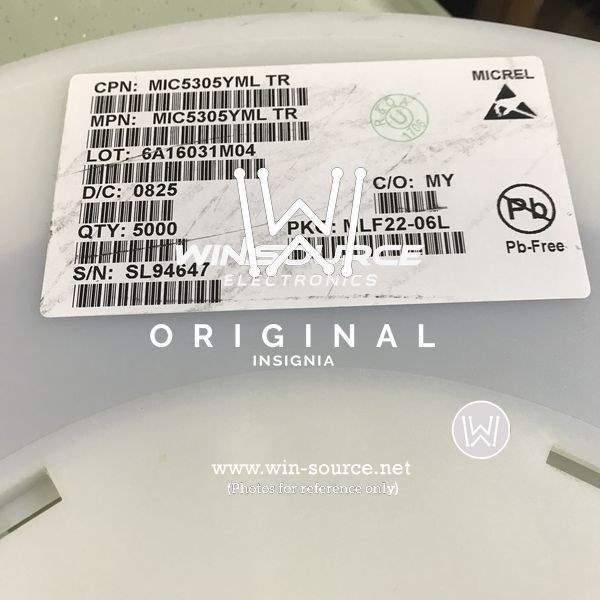

Microchip Technology's MIC5305YML-TR LDO Voltage Regulator

The MIC5305YML-TR from Microchip Technology is a highly reliable, low dropout voltage regulator (LDO) designed for applications requiring a regulated and stable voltage supply. This LDO is capable of delivering up to 150mA of continuous output current and is available in a small, leadless 4-Pin MLF® package, making it ideal for space-constrained applications.

One of the key features of the MIC5305YML-TR is its low dropout voltage, which allows it to continue regulating the output voltage even when the input-to-output voltage differential is minimal. This is particularly beneficial for battery-operated devices, where maximizing the usage of the available battery voltage is crucial. The regulator operates over an input voltage range from 2.5V to 6.0V, making it versatile for various applications.

The MIC5305YML-TR is equipped with several protective features to ensure the safety and longevity of both the regulator and the device it powers. These include thermal shutdown, which prevents the device from overheating, and current limit protection, which safeguards against excessive currents that could potentially damage the circuit. Additionally, it offers fast transient response and low quiescent current, enhancing the overall efficiency of the system it is used in.

With its low-noise performance, the MIC5305YML-TR is particularly well-suited for sensitive RF and analog circuitry, where noise can significantly impact performance. The device also boasts high PSRR (Power Supply Rejection Ratio) characteristics, which help to filter out supply voltage variations and transients, providing a more stable output voltage.

Applications for the MIC5305YML-TR are diverse and include mobile phones, personal digital assistants (PDAs), digital cameras, Bluetooth accessories, and other portable devices where efficient power management is essential. Its robust design and comprehensive set of features make it a reliable choice for designers looking to optimize their power supply architecture while maintaining a compact footprint.

Overall, the MIC5305YML-TR from Microchip Technology represents a blend of performance, flexibility, and reliability, addressing the growing demand for efficient power solutions in modern electronic devices.
