MIC5313-G4YMT-TR

Part No MIC5313-G4YMT-TR
Manufacturer Microchip Technology
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 1.8V/1.2V 0.3A 10TMLF
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 2
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 1.2V, 1.8V
Dropout Voltage-Max 0.2V @ 300mA, 0.2V @ 300mA
Output Current 300mA, 300mA
Operating Supply Current 12μA
PSRR 65dB to 40dB (1kHz to 20kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 10-TMLF (2x2)
Win Source Part Number 1077030-MIC5313-G4YMT-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MIC5313-G4YMT-TR CAD Model

Description

Microchip Technology MIC5313-G4YMT-TR

The MIC5313-G4YMT-TR is a high-performance, dual Low Dropout Regulator (LDO) integrated circuit designed and manufactured by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This component is specifically engineered to deliver a stable and reliable power supply for advanced electronic applications, making it an ideal choice for designers looking to enhance their system's power management capabilities.

Key Features:

  • Output Voltage: The MIC5313-G4YMT-TR offers dual outputs with high accuracy, which are critical for powering sensitive analog and digital circuits.
  • Low Dropout: With its low dropout voltage, the device can maintain regulation with minimal difference between the input and output voltages, improving efficiency and battery life in portable applications.
  • High Current Capability: The LDO can deliver up to 300mA of output current for each channel, sufficient for a wide range of applications.
  • Thermal Shutdown Protection: The device includes an integrated thermal shutdown feature that protects it from overheating, ensuring reliable operation under varying conditions.
  • Current Limit Protection: Built-in current limit protection safeguards the device and the load from damage due to excessive current draw.

Applications:

The MIC5313-G4YMT-TR is versatile and can be used in a multitude of applications, including but not limited to:

  • Mobile Phones
  • Portable Media Players
  • Wireless LAN Devices
  • Personal Digital Assistants (PDAs)
  • Digital Cameras
  • Other Battery-Powered Devices

Package and Availability:

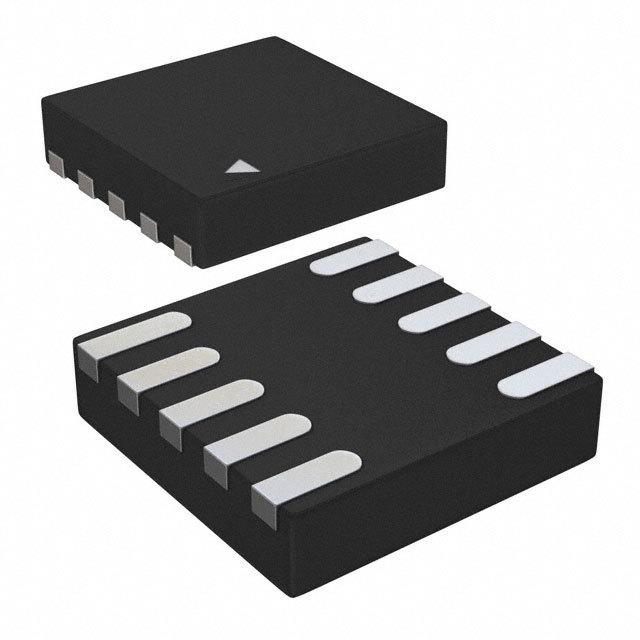

The device is offered in a compact, lead-free 10-pin 2x2mm MLF® package, which is ideal for space-constrained applications. The MIC5313-G4YMT-TR is available in tape and reel packaging, facilitating easy integration into automated manufacturing processes, and ensuring efficient handling and placement during board assembly.

With its combination of dual-channel output, low dropout voltage, and robust protection features, the MIC5313-G4YMT-TR from Microchip Technology is a reliable and efficient solution for advanced power management requirements in modern electronic systems.
