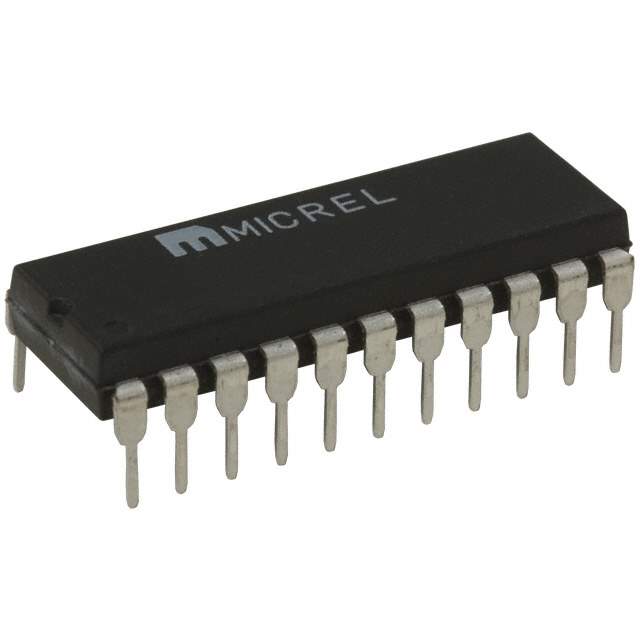

The MIC5801BN, manufactured by Microchip Technology, is a high-performance integrated circuit designed for driving inductive loads, such as relays and solenoids, in a variety of electronic applications. This driver is particularly suitable for industrial control systems, automotive applications, and any system that requires robust and reliable switching capabilities.

Key Features

• Integrated 8-Bit Serial-Input Latched Drivers: The MIC5801BN is equipped with eight serial-input latched drivers, allowing for efficient control of multiple outputs using a minimum number of I/O lines.
• High-Voltage Output: With an output voltage rating of 50V, this driver can handle a wide range of inductive loads, making it highly versatile for various applications.
• High-Current Handling: Each channel of the MIC5801BN can sink up to 500mA of continuous current, providing the necessary drive capability for larger loads.
• Output Clamp Diodes: The inclusion of clamp diodes for inductive transient suppression protects the device and the load from voltage spikes that occur when driving inductive loads.
• CMOS, NMOS, and PMOS Compatible: The input logic is compatible with various logic families, making the MIC5801BN easy to interface with a wide array of control circuits.
• Low Power Consumption: Designed with power efficiency in mind, it consumes minimal power, which is crucial for battery-operated systems.

Applications

The MIC5801BN is ideal for use in:

• Industrial Control Systems
• Automotive Control Systems
• Programmable Logic Controllers (PLCs)
• Home Automation Systems
• Instrumentation and Test Equipment

Quality and Reliability

Microchip Technology is known for its commitment to quality and reliability, and the MIC5801BN is no exception. It is built to meet stringent industry standards, ensuring long-term performance and stability in demanding environments.

For detailed specifications, application notes, and additional resources, customers are encouraged to visit the official Microchip Technology website or contact their support team for personalized assistance.
