Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Microchip Technology
Packaging Tube
Frequency 300MHz ~ 450MHz
Sensitivity -110dBm
Data Rate (Maximum) 10kbps
Modulation or Protocol ASK, OOK
Receiving Current 6mA
Data Interface PCB, Surface Mount
Antenna Connector PCB, Surface Mount
Supply Voltage (V) 3V ~ 3.6V
Temperature Range - Operating -40°C ~ 105°C

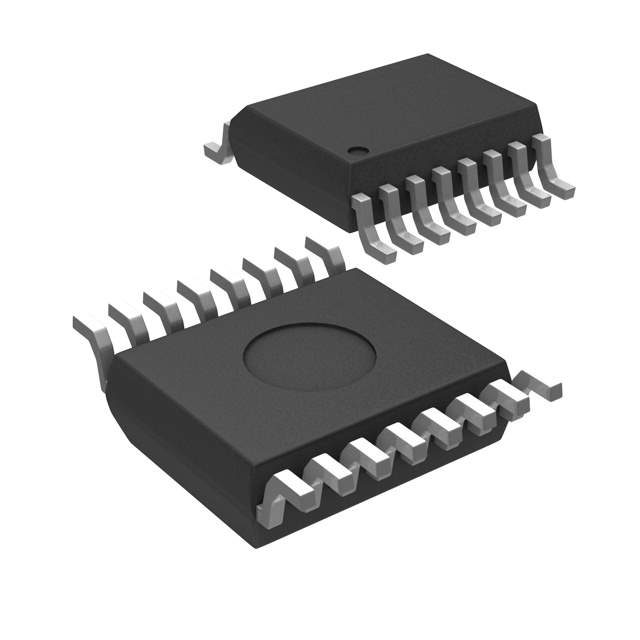

Manufacturer Package 16-SSOP
Supplier Device Package 16-QSOP
Manufacturer Pack Quantity 98
MSL Level 1 (Unlimited)
Win Source Part Number 1223457-MICRF219AYQS
Manufacturer Homepage www.micrel.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MICRF219AYQS CAD Model

Description

Microchip Technology's MICRF219AYQS: A High-Performance QwikRadio® Receiver

The MICRF219AYQS from Microchip Technology is a sophisticated and versatile QwikRadio® receiver that is designed to facilitate reliable and efficient wireless communication for a variety of applications. This integrated circuit is part of Microchip's renowned QwikRadio® series, known for their ease of use and high performance in RF communication.

Key Features:

  • Frequency Range: The MICRF219AYQS operates within the 300 MHz to 440 MHz frequency range, making it suitable for a wide array of applications, including but not limited to remote control systems, garage door openers, and home automation.
  • High Sensitivity: With a high sensitivity level, this receiver ensures reliable signal detection even at low signal strengths, which is crucial for maintaining robust communication links.
  • Low Power Consumption: It is designed for battery-powered devices, thanks to its low power consumption feature. This characteristic makes it an ideal choice for portable and remote applications where power efficiency is a priority.
  • Integrated IF Filter: The inclusion of an integrated IF (Intermediate Frequency) filter simplifies the design process by reducing the number of external components required, thereby saving space and cost.

Applications:

The MICRF219AYQS is perfectly suited for a range of applications that require reliable wireless communication. It's commonly used in:

  • Remote keyless entry systems
  • Wireless sensor networks
  • Telemetry and remote control applications
  • Security systems

Easy Integration:

Microchip's MICRF219AYQS is offered in a compact 16-pin QSOP package, which allows for easy integration into existing designs. The device is designed to work seamlessly with a minimal number of external components, which helps in reducing the overall design complexity and time to market for products incorporating this receiver.

In summary, the MICRF219AYQS is a high-performance, low-power, and easy-to-use RF receiver that delivers reliable wireless communication for a wide range of applications. Its integration of critical features and Microchip's reputation for quality make it an excellent choice for designers looking to add wireless capabilities to their products.
