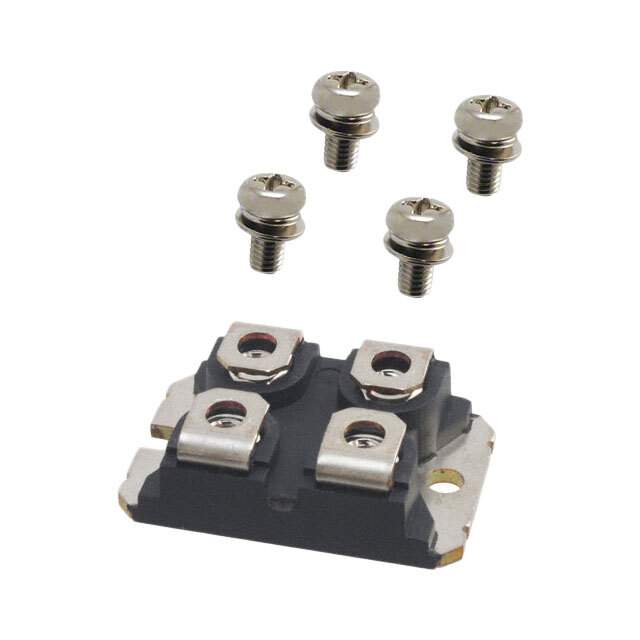

Microchip Technology's MSC040SMA120J: A Robust SiC MOSFET

The MSC040SMA120J is a state-of-the-art silicon carbide (SiC) MOSFET brought to you by Microchip Technology, a renowned leader in the field of semiconductor solutions. This device is designed to meet the needs of high-efficiency and high-power applications, offering a combination of low on-resistance and high switching speeds.

Key Features

• High Power Efficiency: With a drain-to-source voltage (V<sub>DS) of 1200V, the MSC040SMA120J can handle high voltage levels while minimizing power losses, making it ideal for energy-sensitive applications.
• Low On-Resistance: A low on-resistance (R<sub>DS(on)) of just 40mΩ ensures that power dissipation is kept to a minimum, improving overall system efficiency.
• Fast Switching: The device's fast switching capabilities reduce transition losses, which is critical for high-frequency operations.
• High Temperature Performance: The SiC MOSFET operates exceptionally well at elevated temperatures, maintaining stability and reliability where traditional silicon devices might falter.
• Robust Package: Enclosed in a robust package, the MSC040SMA120J is designed to withstand harsh environments and is suitable for rugged applications.

Applications

The MSC040SMA120J is versatile and can be used in a range of applications that demand high efficiency and reliability. Some of the typical applications include:

• Power supply units (PSUs)
• Electric vehicle (EV) charging stations
• Solar inverters and photovoltaic (PV) systems
• Industrial motor drives
• High-voltage DC/DC converters

Advantages of SiC Technology

Silicon carbide technology offers several advantages over traditional silicon in power devices. The MSC040SMA120J benefits from SiC's superior thermal conductivity, lower power losses, and higher switching frequencies. These characteristics make the device an excellent choice for systems where efficiency is paramount.

With the MSC040SMA120J, Microchip Technology continues its tradition of providing advanced semiconductor products that push the boundaries of power management technology. Whether for power conversion or for driving motors, this SiC MOSFET stands out as a high-performance component in any power electronics designer's toolkit.
