Microchip Technology's PIC12LC671-04/SM Microcontroller

The PIC12LC671-04/SM is a high-performance microcontroller unit (MCU) from Microchip Technology, designed for embedded applications requiring low power consumption and compact packaging. This 8-bit microcontroller is a member of Microchip's renowned PIC family, which is celebrated for its ease of use, versatility, and robustness in a wide range of applications.

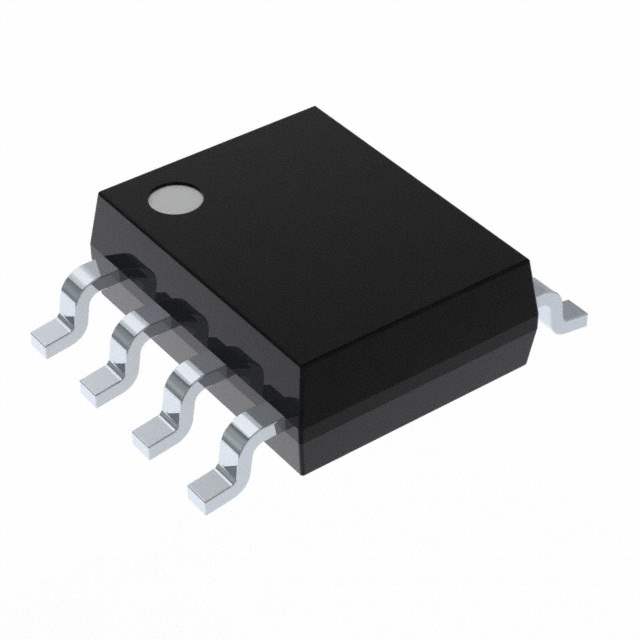

Featuring a 4 MHz internal oscillator, the PIC12LC671-04/SM provides a solid balance between processing speed and power efficiency, making it an ideal choice for battery-powered devices and power-sensitive applications. The MCU comes in a small-outline 8-pin surface-mount package (SM), which allows for a minimal footprint on the circuit board, thus saving valuable space in compact electronic designs.

The PIC12LC671-04/SM is equipped with 1.75 KB of programmable flash memory, which is ample space for storing application code. Additionally, it includes 128 bytes of EEPROM data memory, which is particularly useful for storing non-volatile data that must be preserved during power cycles, such as configuration settings or calibration data.

With 68 bytes of RAM, this microcontroller provides sufficient temporary data storage for most simple to moderately complex tasks. The device also features an integrated 8-channel 8-bit analog-to-digital converter (ADC), which allows for the direct interfacing with analog sensors and the conversion of analog signals into digital values for processing by the MCU.

Other notable features of the PIC12LC671-04/SM include:

• Watchdog Timer (WDT) for system reliability and recovery from unexpected conditions.
• Power-saving Sleep mode to reduce energy consumption when the MCU is idle.
• In-circuit serial programming (ICSP) capability for easy firmware updates and debugging.
• Power-on Reset (POR) and Brown-out Reset (BOR) for improved stability and reliability.

The PIC12LC671-04/SM is an excellent choice for designers looking for an MCU that combines low power consumption with sufficient computational power and a rich set of peripherals. Its adaptability makes it suitable for a multitude of applications, including industrial control systems, consumer electronics, automotive modules, and IoT devices.
