Microchip Technology's PIC16C74B/JW Microcontroller

The PIC16C74B/JW is a high-performance microcontroller from Microchip Technology, renowned for its versatility and reliability in a wide range of applications. This particular model is part of the PIC16CXX family of microcontrollers, which are well-known in the industry for their robust instruction set and ease of use.

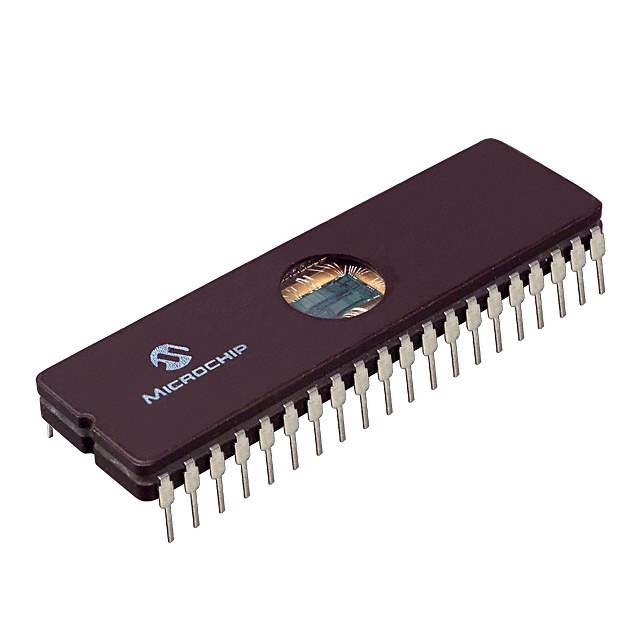

This microcontroller features a 40-pin Windowed Ceramic Dual In-line Package (CERDIP), which allows for direct access to the silicon die for debugging purposes with ultraviolet (UV) erasure. The 'JW' suffix denotes the windowed package that is especially useful for prototype development and educational purposes where multiple program and erase cycles are required.

The PIC16C74B/JW boasts a 14-bit instruction set architecture, which provides a good balance between code compactness and ease of programming. It comes with 7KB of on-chip program memory, which is more than adequate for a wide range of moderate complexity applications. The device also includes 192 bytes of RAM and 192 bytes of EEPROM data memory, which is essential for non-volatile storage of data.

With 33 I/O pins, the PIC16C74B/JW offers ample interface options, making it ideal for interfacing with a variety of peripheral devices. The microcontroller is equipped with a rich set of peripherals, including four 8-bit timers, a synchronous serial port capable of SPI and I2C communication, and two Capture/Compare/PWM modules which are extremely useful for control-oriented tasks.

The microcontroller operates within a voltage range of 4.5V to 5.5V, which is typical for many 5V logic devices and systems. Additionally, it supports a wide temperature range, making it suitable for industrial applications. The high-speed processor core is capable of executing most instructions in just one or two machine cycles, with a maximum operating frequency of up to 20MHz, providing the computational power necessary for complex tasks.

In summary, the PIC16C74B/JW from Microchip Technology is a powerful and flexible microcontroller solution that is ideal for developers looking for a balance between performance and ease of development. Its windowed package design and comprehensive feature set make it an excellent choice for both educational purposes and professional applications.
