Microchip Technology's PIC16F1508-I/GZ Microcontroller

The PIC16F1508-I/GZ is a high-performance, 8-bit microcontroller from Microchip Technology, designed for a wide array of applications that require a rich feature set and efficient operation. This microcontroller is a member of Microchip's extensive PIC16F family, renowned for their ease of use, reliability, and cost-effectiveness.

Equipped with a powerful and efficient Enhanced Mid-range Core, the PIC16F1508-I/GZ offers a broad operating voltage range of 2.0V to 5.5V, making it suitable for battery-operated and low-power applications. The device operates at a maximum frequency of 20 MHz, providing a balanced approach between power consumption and processing speed, which is essential for real-time applications.

The microcontroller features 7 KB of Flash program memory, allowing for robust program storage, and 256 bytes of EEPROM, which is ideal for non-volatile data storage. Additionally, it is equipped with 512 bytes of RAM, ensuring ample space for data manipulation and buffer storage.

One of the standout features of the PIC16F1508-I/GZ is its rich set of peripherals. It includes an integrated 10-bit Analog-to-Digital Converter (ADC) with up to 12 channels, enabling the MCU to interface with analog sensors and devices directly. The device also boasts two comparators, a 5-bit Digital-to-Analog Converter (DAC), and a Capture/Compare/PWM (CCP) module, which are essential for motor control, lighting, and other PWM-based applications.

For communication purposes, this microcontroller supports various serial communication protocols such as I2C, SPI, and EUSART, providing versatile options for interfacing with other ICs, sensors, and devices. Furthermore, the PIC16F1508-I/GZ comes with a unique ID for device serialization and an array of safety features including Power-on Reset (POR), Brown-out Reset (BOR), and a Watchdog Timer (WDT) to ensure reliable operation.

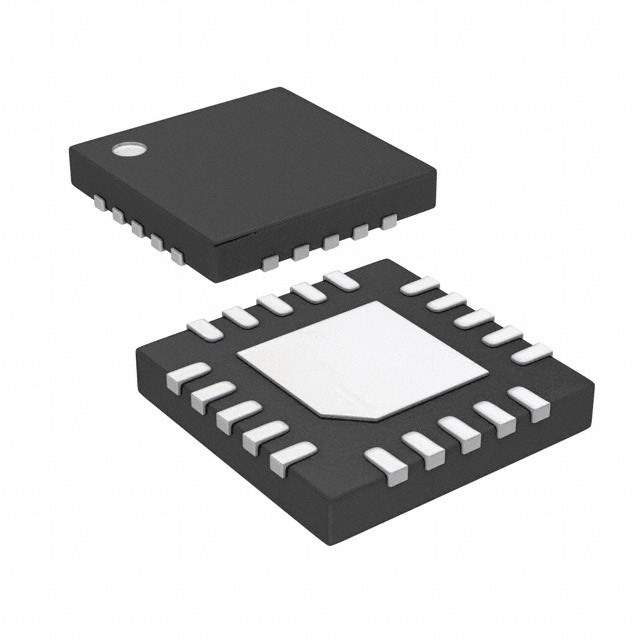

The PIC16F1508-I/GZ is available in a 20-pin UQFN package, which is compact and suitable for space-constrained applications. It is an excellent choice for designers looking for a microcontroller that provides a perfect balance of performance, power efficiency, and peripheral integration for a wide range of applications such as consumer electronics, industrial control systems, and automotive products.
