Products specifications

Win Source Part Number WS1197069-PIC16F1509-E/ML
Win Source Part Number Cross
Manufacturer Microchip Technology
Category Integrated Circuits (ICs) Embedded Microcontrollers
Series PIC® XLP™ 16F
Package Tube
Product Status Active
Core Processor PIC
Core Size 8-Bit
Speed 20MHz
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Size 14KB (8K x 14)
Ultra Librarian 3D Model Ultra Librarian PIC16F1509-E/ML CAD Model

Description

Microchip Technology PIC16F1509-E/ML Microcontroller

The PIC16F1509-E/ML from Microchip Technology is a high-performance, 8-bit microcontroller packed with a rich set of features and peripherals suitable for a wide range of applications. This microcontroller is part of the enhanced Mid-range Core with 49 Instruction, 16 Stack Levels family, which is known for its low power consumption and flexibility in various electronic designs.

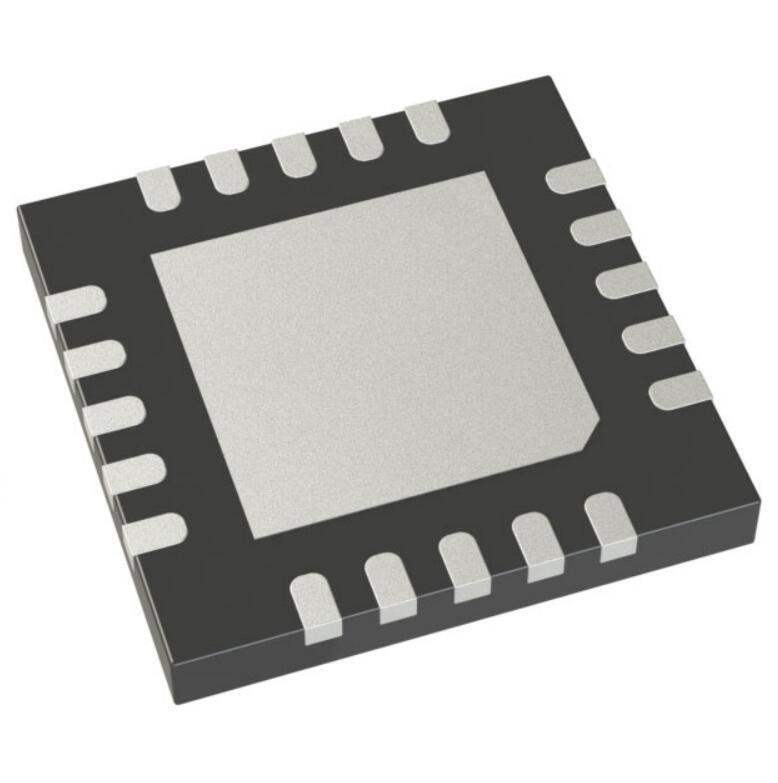

Encased in a 20-pin QFN package, the PIC16F1509-E/ML operates with a wide voltage range of 2.0V to 5.5V, making it versatile for both battery-operated and powered applications. Its clock speed can go up to 20 MHz, providing a robust platform for time-sensitive tasks and control systems.

The device boasts 14 KB of flash memory, allowing ample space for application code, and 512 bytes of EEPROM for non-volatile data storage. With 1 KB of RAM, it facilitates efficient data manipulation and task management. The microcontroller includes an integrated 10-bit Analog-to-Digital Converter (ADC) with up to 17 channels, offering precise measurement capabilities for analog signals.

One of the standout features of the PIC16F1509-E/ML is its five 8-bit and three 16-bit timers, which provide excellent support for timing and counting operations. Additionally, it has two Capture, Compare, PWM (CCP) modules that are essential for generating accurate pulse widths and measuring time intervals.

The device also supports various serial communication protocols, including I2C, SPI, and EUSART, which are crucial for interfacing with sensors, memory modules, and other microcontrollers. Enhanced safety features like Power-On Reset (POR), Power-up Timer (PWRT), and Oscillator Start-up Timer (OST) ensure reliable operation under fluctuating power conditions.

For security and maintenance purposes, the PIC16F1509-E/ML is equipped with in-circuit serial programming (ICSP) and debug features, allowing for easy firmware updates and troubleshooting. This microcontroller is an ideal choice for designers looking for a compact, feature-rich MCU for their next project in areas such as consumer electronics, automotive systems, industrial controls, and Internet of Things (IoT) devices.
