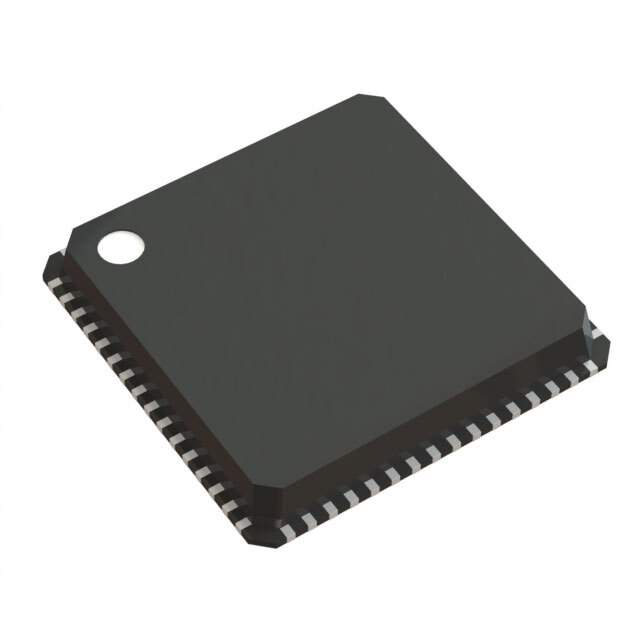

PIC16F1527-E/MR

Part No PIC16F1527-E/MR
Manufacturer Microchip Technology
Catalog Embedded - Microcontrollers
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Microchip Technology
Series PIC® XLP™ 16F
Package Tube
Core Processor PIC
Core Size 8-Bit
Speed 20MHz
Connectivity I2C, LINbus, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 54
Program Memory Size 28KB (16K x 14)
Program Memory Type FLASH
RAM Size 1.5K x 8
Supply Voltage - Operating 2.3V ~ 5.5V
Data Converters A/D 30x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 64-VFQFN Exposed Pad
Supplier Device Package 64-QFN (9x9)
Base Product Number PIC16F1527
Standard Package 40
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1264351-PIC16F1527-E/MR
Ultra Librarian 3D Model Ultra Librarian PIC16F1527-E/MR CAD Model

Description

Microchip Technology's PIC16F1527-E/MR Microcontroller

The PIC16F1527-E/MR is a high-performance microcontroller unit (MCU) from the renowned manufacturer Microchip Technology, designed to cater to a wide range of embedded applications. This versatile MCU is part of the PIC16F family, which is well-known for its robust architecture, low-power consumption, and flexibility, making it an ideal choice for designers looking to develop advanced and efficient systems.

At the heart of the PIC16F1527-E/MR is a powerful 8-bit processor that can operate at a maximum frequency of 32 MHz. This processor is coupled with 56 KB of flash memory, which provides ample space for application code, and 2 KB of RAM, ensuring smooth operation and multitasking capabilities. The device also includes 256 bytes of EEPROM, which is perfect for storing non-volatile data that must be preserved during power cycles.

One of the standout features of the PIC16F1527-E/MR is its extensive set of peripherals. It boasts dual Enhanced Universal Synchronous Asynchronous Receiver Transmitters (EUSARTs), which provide serial communication capabilities, and two Master Synchronous Serial Port (MSSP) modules supporting both SPI and I2C communication protocols. This makes the MCU highly adaptable for various communication needs.

The microcontroller also comes with a 10-bit Analog-to-Digital Converter (ADC) with up to 28 channels, enabling precise measurement of analog signals, which is crucial for sensor interfacing and data acquisition tasks. Additionally, the PIC16F1527-E/MR supports various timers, including four 16-bit timers and two 8-bit timers, which are essential for time-sensitive operations.

For enhanced security and system management, the device includes features such as Power-on Reset (POR), Brown-out Reset (BOR), and a Watchdog Timer (WDT). These features help in maintaining the system's reliability and preventing undesired operation due to power fluctuations or software anomalies.

The MCU comes in a 64-pin QFN package, denoted by the suffix 'MR', which is suitable for compact designs that require a small footprint. The 'E' in the part number indicates the temperature range, with this particular model being rated for extended industrial temperature ranges, ensuring reliable performance across diverse environmental conditions.

In summary, the PIC16F1527-E/MR from Microchip Technology is a feature-rich, high-performance microcontroller that provides designers with a scalable and cost-effective solution for a multitude of embedded applications.
