Products specifications

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Microchip Technology
Series PIC® 16F
Package Tube
Product Status Active
Core Processor PIC
Core Size 8-Bit
Speed 20MHz
Connectivity -
Peripherals POR, WDT
Number of I/O 11
Program Memory Size 1.5KB (1K x 12)
Program Memory Type FLASH
EEPROM Size -
RAM Size 72 x 8
Voltage - Supply (Vcc/Vdd) 2V ~ 5.5V
Data Converters -
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount

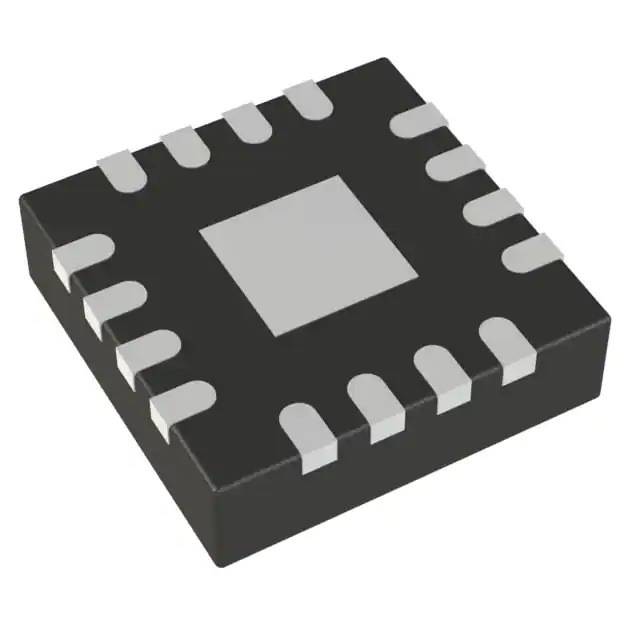

Package / Case 16-VFQFN Exposed Pad
Supplier Device Package 16-QFN (3x3)
Base Product Number PIC16F505
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1379467-PIC16F505-E/MG
Ultra Librarian 3D Model Ultra Librarian PIC16F505-E/MG CAD Model

Description

Microchip PIC16F505-E/MG Microcontroller

The PIC16F505-E/MG is a powerful, yet compact, 8-bit microcontroller from the renowned Microchip Technology. This versatile microcontroller is housed in a 16-pin QFN (Quad Flat No-lead) package, making it ideal for space-constrained applications. The PIC16F505-E/MG is part of the PIC16F family, which is known for its ease of use and robustness in a variety of electronic applications.

With a wide operating voltage range of 2.0V to 5.5V, this microcontroller is designed for flexibility, ensuring compatibility with both low-power and standard-power devices. Its high-performance RISC CPU (Reduced Instruction Set Computer) allows for efficient processing with a minimal instruction set, thereby reducing the complexity of programming and speeding up execution times.

The PIC16F505-E/MG features 1.5KB of flash memory for program storage, which is ample for many simple to moderately complex applications. Additionally, it includes 72 bytes of data RAM and 64 bytes of EEPROM, which are useful for storing non-volatile data that must be preserved across power cycles.

This microcontroller comes with an array of built-in peripherals, including an 8-bit timer, a watchdog timer for system reliability, and up to 12 I/O pins that provide ample interfacing options with other components in a system. The I/O pins are highly flexible, with individual direction control, which makes them suitable for a wide range of applications.

Programming and debugging the PIC16F505-E/MG is straightforward, thanks to the ICSP (In-Circuit Serial Programming) capability that allows for programming after the device has been placed in a circuit. This feature significantly simplifies the development process and reduces time to market for products that utilize this microcontroller.

Whether you're developing consumer electronics, automotive applications, or industrial control systems, the PIC16F505-E/MG offers a perfect blend of power, flexibility, and ease of use that can help bring your innovative ideas to life.
