Microchip Technology's PIC16F818-I/ML Microcontroller

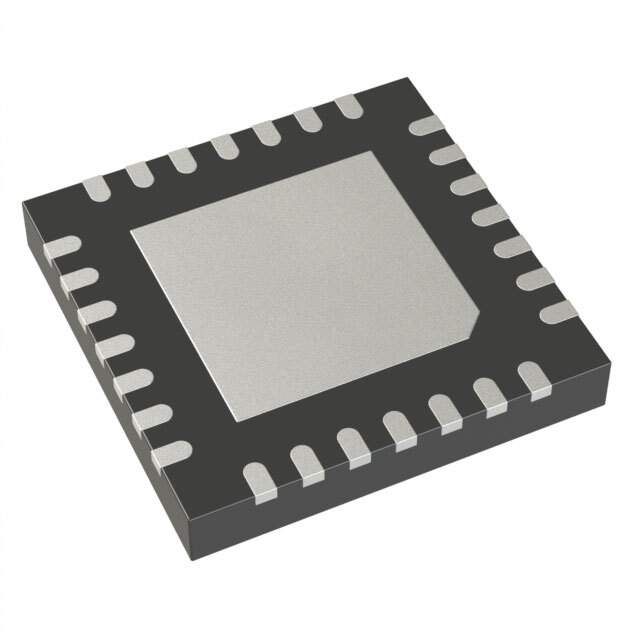

The PIC16F818-I/ML is a high-performance microcontroller unit (MCU) from Microchip Technology, designed to offer a perfect balance of power and flexibility for a wide range of embedded applications. This compact and efficient 8-bit MCU is housed in a 28-pin QFN package, making it an ideal choice for space-constrained projects.

At the heart of the PIC16F818-I/ML lies a powerful RISC architecture that can execute most instructions in just one machine cycle, with a maximum operating speed of 20 MHz. This allows for swift processing and response times, which is crucial for real-time applications. The device features 1.75 KB of flash memory, providing ample space for application code, and 256 bytes of RAM for data storage, ensuring smooth operation.

One of the standout features of the PIC16F818-I/ML is its Enhanced Mid-range Core with 35 Instruction, 8 Stack Levels. This core architecture enhances the execution speed and code efficiency, making the MCU an excellent choice for developers looking to optimize their applications for both speed and power consumption.

Furthermore, the microcontroller is equipped with a variety of peripherals that expand its capabilities. It includes a 10-bit analog-to-digital converter (ADC) with up to 11 channels, which allows for precise analog signal measurement. The device also boasts two analog comparators and a Capture/Compare/PWM (CCP) module, which can be used for implementing timers, measuring pulse widths, or generating pulse width modulation signals for controlling motors and other devices.

For communication purposes, the PIC16F818-I/ML offers a versatile serial communication interface with both USART and SPI capabilities, enabling easy data transfer and integration with other devices in a system. Additionally, it features a brown-out reset, watchdog timer, and power-saving sleep mode, which contribute to the reliability and efficiency of the microcontroller in various operating conditions.

Designed with flexibility in mind, the PIC16F818-I/ML operates within a wide voltage range of 2.0V to 5.5V, making it suitable for both battery-operated and powered applications. Its industrial temperature range from -40°C to +85°C ensures reliable performance even in harsh environments.

In summary, the PIC16F818-I/ML from Microchip Technology is a feature-rich and versatile MCU that is ideal for designers looking to create sophisticated yet compact embedded systems.
