Same model may have multiple batches, images only for reference.

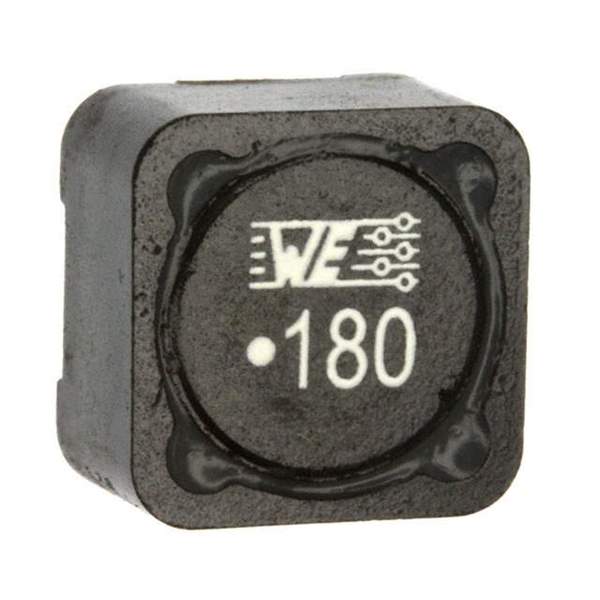

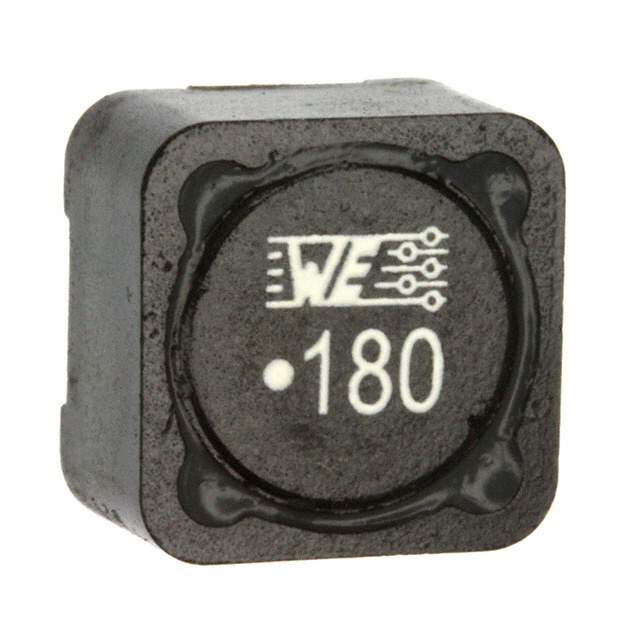

744770118 Real Image
Same model may have multiple batches, images only for reference.

744770118

Part No 744770118
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 18UH 4.2A 39 MOHM SMD
Datasheet
744770118 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 18 µH
Tolerance ±20%
Current Rating (Amps) 4.2 A
Current - Saturation (Isat) 5.4A
Shielding Shielded
DC Resistance (DCR) 39mOhm Max
Frequency - Self Resonant 13.2MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 845451-744770118
Ultra Librarian 3D Model Ultra Librarian 744770118 CAD Model

Description

The WE-PD series from Wurth Electronics Inc is a drum core, wirewound inductor with a shielded design.

  • Size: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Inductance: 18 µH
  • Material: ferrite
  • DC Resistance (DCR): 39mOhm
  • Current Rating: 4.2 A
  • Temperature Range: -40°C to 125°C
  • Mounting: surface mount
  • Package: nonstandard
  • AEC-Q200 Rated: yes
  • Frequency Self-Resonant: 13.2MHz
  • Benefit: excellent performance and efficiency for various electronic circuits and systems.
