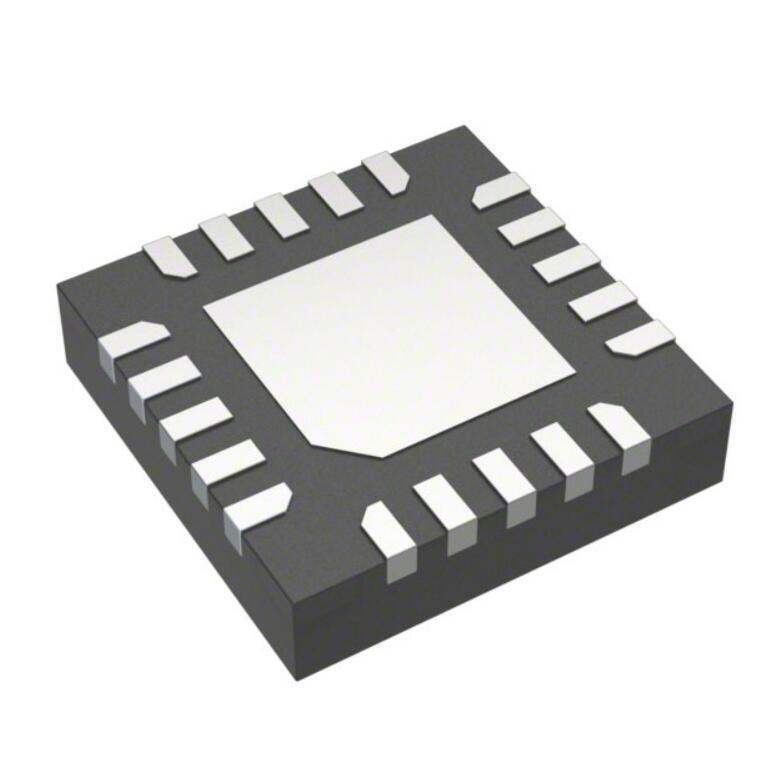

Microchip Technology's PIC18F14Q40-I/REB

The PIC18F14Q40-I/REB is a high-performance microcontroller unit (MCU) from Microchip Technology, designed for advanced embedded applications. This robust and versatile MCU is part of the PIC18 Q40 family that is well-suited for a wide range of applications in the industrial, automotive, and consumer electronics sectors. With its rich set of features and low-power consumption, the PIC18F14Q40-I/REB is an ideal choice for designers looking for a reliable and efficient solution for their complex projects.

Key Features:

• Core: The MCU is built around a powerful PIC18 core with a clock speed of up to 64 MHz, providing ample processing power for demanding applications.
• Memory: It comes equipped with 16 KB of Flash memory and 2 KB of SRAM, ensuring sufficient space for application code and data storage.
• I/O Pins: The device offers 18 versatile I/O pins, which can be configured for various functions and interfacing options.
• Communication Peripherals: It includes multiple communication interfaces such as UART, SPI, and I2C, enabling easy connectivity with other devices and peripherals.
• 10-bit ADC: An integrated 10-bit Analog-to-Digital Converter (ADC) with Computation (ADCC) allows for precise analog signal measurements and advanced computations directly in hardware.
• 5-bit DAC: The inclusion of a 5-bit Digital-to-Analog Converter (DAC) enables analog voltage level output capabilities.
• Power Management: Low-power modes and an on-chip voltage regulator contribute to energy efficiency, making it suitable for battery-operated devices.
• Configurable Logic Cell (CLC): The device features Configurable Logic Cells that provide customizable hardware-based logic to help reduce the need for external components and complex code.

Applications:

The PIC18F14Q40-I/REB's combination of performance, memory, and peripherals make it an excellent choice for applications such as:

• Automotive systems
• Industrial automation and control
• Smart home devices
• Consumer electronics
• Internet of Things (IoT) devices

With its robust design and extensive capabilities, the PIC18F14Q40-I/REB MCU from Microchip Technology provides a compact and powerful solution for developers looking to push the boundaries of what's possible in their embedded applications.
