Microchip Technology PIC18F24K42-I/MV Microcontroller

The PIC18F24K42-I/MV from Microchip Technology is a high-performance microcontroller (MCU) that integrates advanced features and capabilities suitable for a wide range of applications. This MCU is part of the PIC18 family, which is renowned for its robustness, low power consumption, and versatility.

At the heart of the PIC18F24K42-I/MV is a powerful 8-bit processor with an extended operating voltage range of 1.8V to 5.5V, making it ideal for battery-operated and power-sensitive applications. It boasts a maximum CPU speed of 64 MHz, achieved through its 16 MIPS (Million Instructions Per Second) architecture, allowing for swift processing and response times.

The device features 16 KB of Flash memory and 2 KB of RAM, providing ample space for application code and data storage. Additionally, it includes 256 bytes of EEPROM, which can be used for non-volatile storage of configuration settings or small amounts of data that must be retained during power cycles.

This microcontroller supports a range of communication protocols, including I²C, SPI, and EUSART (Enhanced Universal Synchronous Asynchronous Receiver Transmitter), facilitating easy integration into various communication networks and systems. Its 25 I/O pins allow for flexible interfacing with peripherals, sensors, and other electronic components.

The PIC18F24K42-I/MV is equipped with several advanced peripherals, such as a 12-bit Analog-to-Digital Converter (ADC) with Computation (ADCC), 5-bit Digital-to-Analog Converter (DAC), Comparators, and a 10-bit PWM (Pulse Width Modulation) module. These features make it an excellent choice for analog signal processing and control-related tasks.

Safety and reliability are also addressed with built-in features such as Windowed Watchdog Timer (WWDT), Brown-out Reset (BOR), and Configurable Logic Cell (CLC) that enhance system stability and provide protection against unexpected conditions.

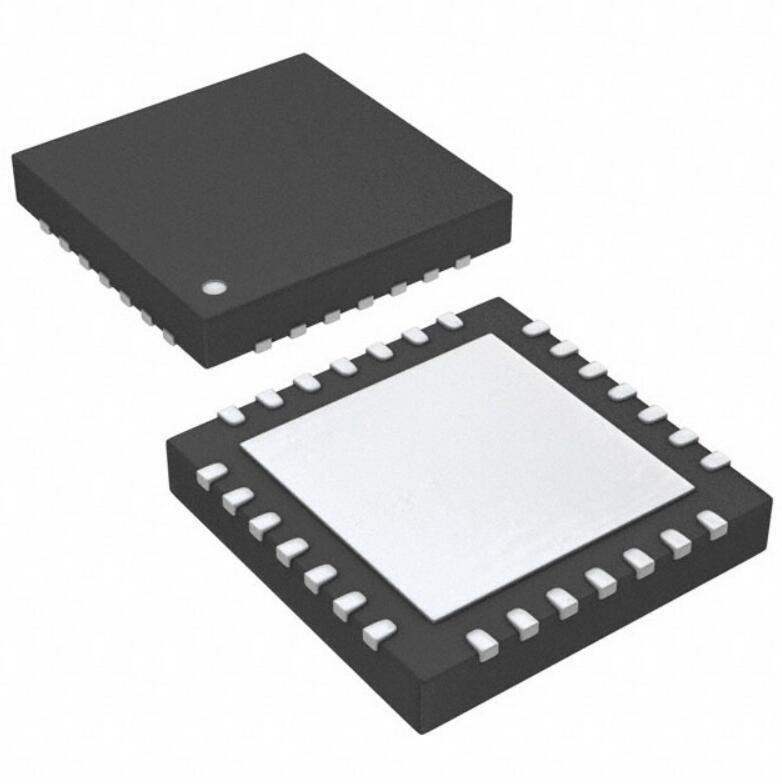

The PIC18F24K42-I/MV comes in a 28-pin UQFN package and is characterized for operation from -40°C to +125°C, ensuring reliable performance across a broad range of environmental conditions. Whether you're designing consumer electronics, automotive systems, or industrial controls, the PIC18F24K42-I/MV offers a balance of power, flexibility, and robustness to meet the demands of your next project.
