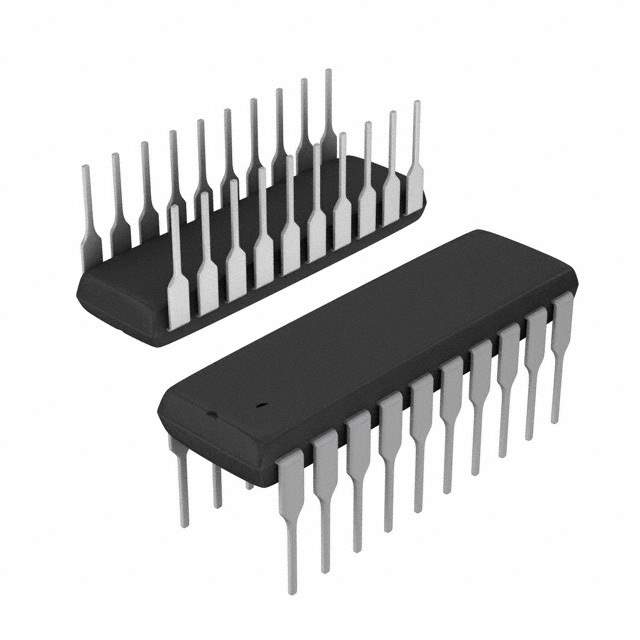

The TC14433EJG is a high-performance analog-to-digital converter (ADC) developed by Microchip Technology, a leading provider of microcontroller and analog semiconductors. This precision ADC is designed for a wide range of applications, including industrial control systems, data acquisition, and instrumentation that require accurate and reliable digital representations of analog signals.

Key Features

• Resolution: The TC14433EJG offers a 3½-digit resolution, ensuring precise data conversion for critical applications.
• Integration: It integrates a dual-slope ADC, reference voltage, and seven-segment decoders, streamlining design and reducing external component count.
• Interface: This product features an easy-to-use multiplexed BCD (Binary-Coded Decimal) output, facilitating the interface with microcontrollers and digital systems.
• Conversion Rate: The device provides a high conversion rate, suitable for applications that require both accuracy and speed.
• Power Supply: It operates on a single power supply, simplifying power management within the system.
• Auto-Zero: The auto-zero feature minimizes offset errors, enhancing measurement accuracy.
• Overrange and Underrange Indications: These features provide additional data integrity by alerting the system to readings that are outside the measurable range.

Applications

The TC14433EJG is versatile and can be used in various applications that require high-precision analog-to-digital conversion. It is particularly well-suited for:

• Industrial control systems
• Portable instrumentation
• Data loggers
• Digital multimeters
• Laboratory equipment

Reliability and Quality

Microchip Technology is renowned for its commitment to quality and reliability. The TC14433EJG is built to meet stringent industry standards, ensuring performance and durability in even the most demanding environments. With Microchip's reputation for excellence, users can trust in the TC14433EJG for their critical applications.
