Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features Low-Side Gate Driver IC Inverting, Non-Inverting 8-CERDIP
Manufacturer Microchip Technology
Package Tube
Part Status Obsolete
Operating Temperature Range -55°C ~ 125°C (TA)
Mounting Through Hole
Package 8-CDIP (0.300", 7.62mm)
Case / Package 8-CERDIP
Family Name TC428
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Quantity per package 56
Popularity High
Supply and Demand Status Balance
Win Source Part Number 936152-TC428MJA
Ultra Librarian 3D Model Ultra Librarian TC428MJA CAD Model

Description

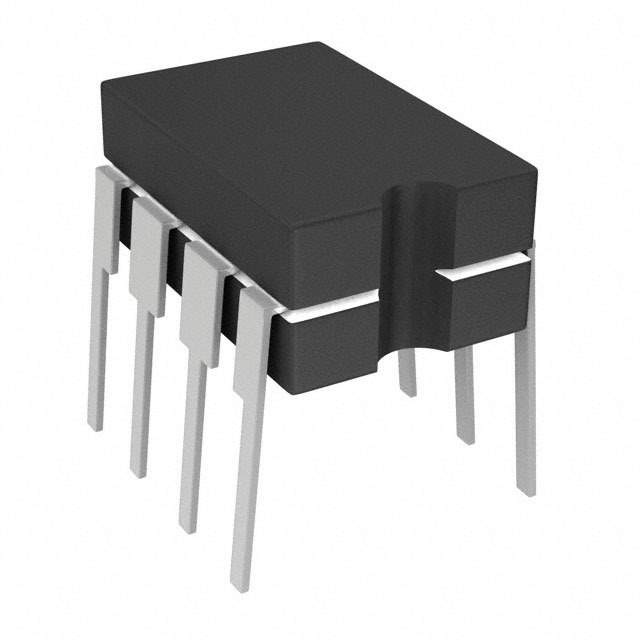

Microchip Technology TC428MJA: High-Speed Dual MOSFET Drivers

The TC428MJA from Microchip Technology is a high-performance, dual non-inverting MOSFET driver designed to accommodate a wide range of applications requiring high-speed, efficient power switching. This device is capable of delivering peak output currents of up to 1.5A, making it an excellent choice for driving large capacitive loads with minimal delay and switching losses.

Key Features:

  • High-Speed Operation: The TC428MJA is optimized for high-speed operation, enabling fast switching transitions for improved performance in high-frequency circuits.
  • High Peak Output Current: With the ability to deliver peak currents up to 1.5A, this driver can effectively drive large MOSFETs and IGBTs.
  • Wide Operating Range: It operates over a supply voltage range of 4.5V to 18V, making it versatile for various power systems.
  • Low Shoot-Through Current: Its design minimizes the shoot-through current, protecting the MOSFETs during high-speed switching.
  • Matched Rise and Fall Times: The TC428MJA provides matched rise and fall times, which helps to reduce switching losses and electromagnetic interference (EMI).
  • Thermal Protection: Built-in thermal protection ensures reliable operation even under conditions that may lead to overheating.
  • Latch-Up Protected: It includes latch-up protection up to 500mA on all pins, safeguarding the device from latch-up phenomena during high-speed switching.

Applications:

The versatility and robustness of the TC428MJA make it suitable for a wide range of applications, including:

  • Switch Mode Power Supplies (SMPS)
  • DC-to-DC Converters
  • Motor Controllers
  • Line Drivers
  • Pulse Generators
  • Class D Switching Amplifiers

Quality and Reliability:

Microchip Technology is known for its commitment to quality and reliability, and the TC428MJA is no exception. It is designed to meet stringent industry standards, ensuring long-term reliability for critical applications. Whether you are developing power systems for industrial, automotive, or consumer electronics, the TC428MJA provides a high-efficiency solution for your MOSFET driving needs.
