Microchip Technology's USB3315C-CP: High-Speed USB Transceiver

Microchip Technology's USB3315C-CP is a cutting-edge USB 2.0 Hi-Speed transceiver chip that has been designed to meet the needs of modern, high-performance electronics. This versatile transceiver is a perfect solution for applications requiring USB connectivity, providing a seamless interface between the physical USB port and the digital processing components of the system.

Key Features

• USB 2.0 Compliance: The USB3315C-CP is fully compliant with the USB 2.0 specification, ensuring reliable operation at data transfer speeds of up to 480 Mbps.
• UTMI+ Interface: It features a UTMI+ Level 3 interface for USB 2.0 Hi-Speed data transfer, which is compatible with a 8-bit or 16-bit data bus.
• Low Power Consumption: Designed with power efficiency in mind, the device has low power consumption modes including support for USB suspend, sleep, and partial power-down states.
• Integrated Resistors: On-chip 1.5 kΩ pull-up and 15 kΩ pull-down resistors are included, which simplifies the design and reduces external component requirements.
• Flexible Clocking Options: The USB3315C-CP supports a variety of clocking options, including a 19.2 MHz crystal oscillator, a 26 MHz crystal, or an external clock source.

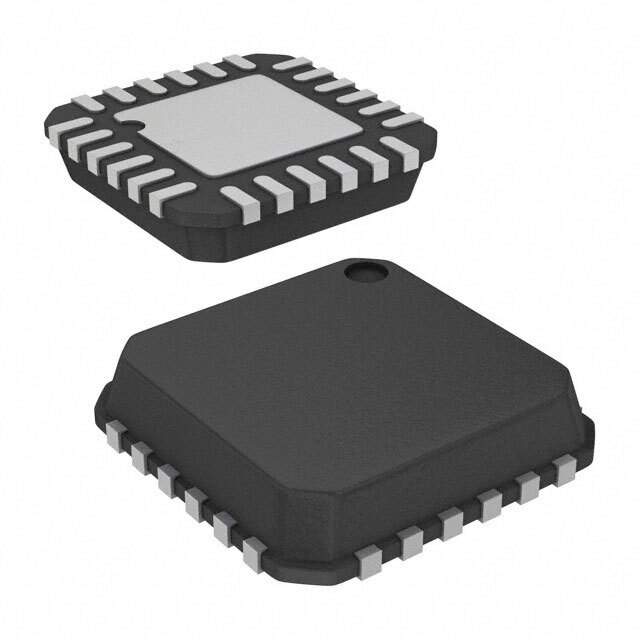

• Small Form Factor: Housed in a compact 24-pin QFN package, it is ideal for space-constrained applications.
• Industrial Temperature Range: The device is operational over an industrial temperature range of -40°C to +85°C, making it suitable for harsh environments.

Applications

The USB3315C-CP is a versatile component that can be used in a wide range of applications, including but not limited to:

• Mobile Phones
• Portable Media Players
• GPS Devices
• Digital Cameras
• PDAs and Handheld Devices
• Notebook PCs

With its robust feature set and compliance with USB 2.0 specifications, the USB3315C-CP from Microchip Technology provides designers with a reliable and flexible solution for integrating high-speed USB connectivity into their products. Its small footprint and compatibility with various clocking sources make it a go-to choice for developers looking to streamline their designs while maintaining high performance and reliability.
