Microchip Technology USB3340-EZK-TR: High-Speed USB Transceiver

The USB3340-EZK-TR is a state-of-the-art USB 2.0 High-Speed transceiver chip offered by Microchip Technology, a leader in the field of smart, connected, and secure embedded control solutions. This compact and efficient integrated circuit is specifically designed to meet the needs of modern, high-speed USB applications, ensuring fast and reliable data transfer with minimal power consumption.

Key Features

• USB 2.0 Compliance: The device is fully compliant with the USB 2.0 specification, enabling high-speed data transfer rates of up to 480 Mbps.
• UTMI+ Interface: It comes with a UTMI+ Level 3 interface for USB 2.0 High Speed data transfer, providing flexibility and ease of integration with various USB controllers.
• Low Power Consumption: Designed for power-sensitive applications, the USB3340-EZK-TR features low power operation with support for battery charging detection, making it ideal for portable devices.
• High Electrostatic Discharge (ESD) Protection: The device offers built-in ESD protection circuitry, safeguarding against electrostatic discharges and enhancing the durability of the end product.

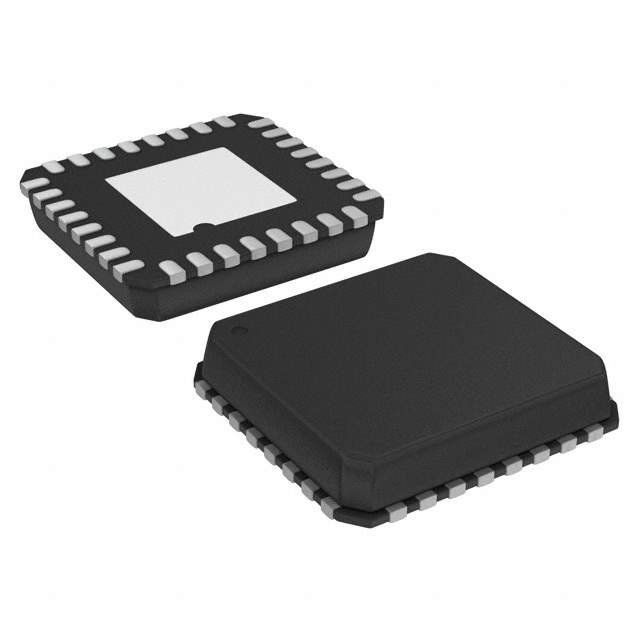

• Small Form Factor: The transceiver is packaged in a small, 32-pin QFN package, measuring only 5x5 mm, which is perfect for space-constrained applications.
• Temperature Range: It operates over an industrial temperature range, ensuring reliable performance in a variety of environments.
• RoHS Compliant: This product adheres to the Restriction of Hazardous Substances (RoHS) directive, which means it is manufactured with environmentally friendly materials.

Applications

The USB3340-EZK-TR is versatile and can be used in a wide array of applications including:

• Mobile Phones and Smart Devices
• Portable Media Players
• GPS Devices
• Digital Cameras
• Gaming Consoles
• Peripheral Connectivity

With its robust design and comprehensive feature set, the USB3340-EZK-TR from Microchip Technology is an excellent choice for developers looking to integrate USB connectivity into their next-generation consumer electronics, industrial, or automotive products. Its high-speed capabilities and low power draw make it a go-to solution for a multitude of USB-enabled devices.
