Products specifications

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Microchip Technology
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 26.7V
Voltage - Clamping (Max) @ Ipp 57V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power - Peak Pulse 500W
Power Line Protection No
Applications Ethernet
Capacitance @ Frequency 3pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 4-VDFN
Supplier Device Package QFN-143
Base Product Number USBQ50424
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1342840-USBQ50424CE3/TR7
Ultra Librarian 3D Model Ultra Librarian USBQ50424CE3/TR7 CAD Model

Description

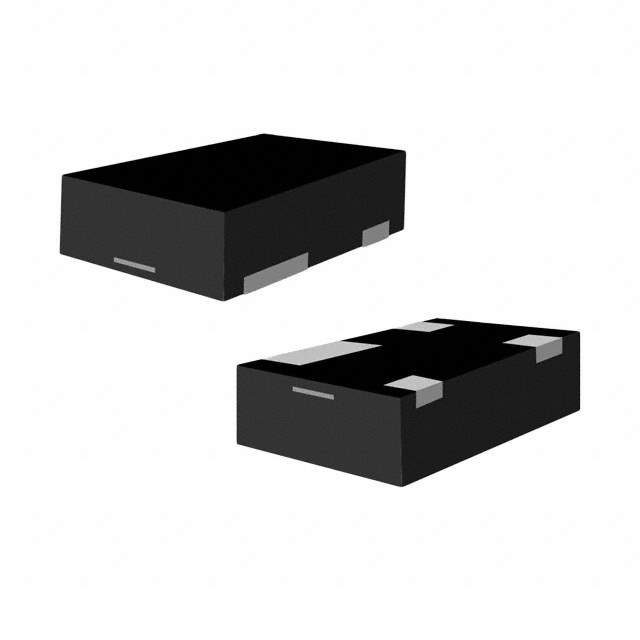

Microchip Technology USBQ50424CE3/TR7

The USBQ50424CE3/TR7 is a state-of-the-art USB 2.0 quadruple bus switch from Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This high-performance switch is designed to provide a seamless interface for USB signal switching necessary for a variety of applications including consumer electronics, computing, and communication devices.

Key Features:

  • USB 2.0 Compliance: The device supports full USB 2.0 data rates ensuring reliable and fast data transfer for connected devices.
  • Low On-Resistance: With its low on-resistance (RON), the USBQ50424CE3/TR7 offers minimal signal attenuation, ensuring integrity and quality of the USB signal.
  • Low Power Consumption: Designed with power efficiency in mind, the switch consumes minimal power, making it ideal for battery-powered applications.
  • Extended Temperature Range: The device operates over an extended temperature range, making it suitable for industrial applications that require robust performance in challenging environments.
  • ESD Protection: Integrated Electrostatic Discharge (ESD) protection circuits safeguard the USB lines from external ESD events, thus enhancing the durability of the end product.
  • Compact Packaging: The USBQ50424CE3/TR7 comes in a small package, which is perfect for space-constrained applications.

Applications:

The versatility of the USBQ50424CE3/TR7 makes it an excellent choice for a wide array of applications. It is particularly well-suited for:

  • USB Hub and Peripheral Switching
  • Mobile Phones and Smart Devices
  • Desktop and Laptop Computers
  • Portable Media Players
  • Networking Equipment
  • Printers and Multi-function Devices

Microchip Technology's commitment to quality and performance is evident in the USBQ50424CE3/TR7, making it a reliable and efficient solution for managing USB connections. By incorporating this advanced bus switch into your design, you can enhance the functionality and user experience of your USB-enabled devices.
