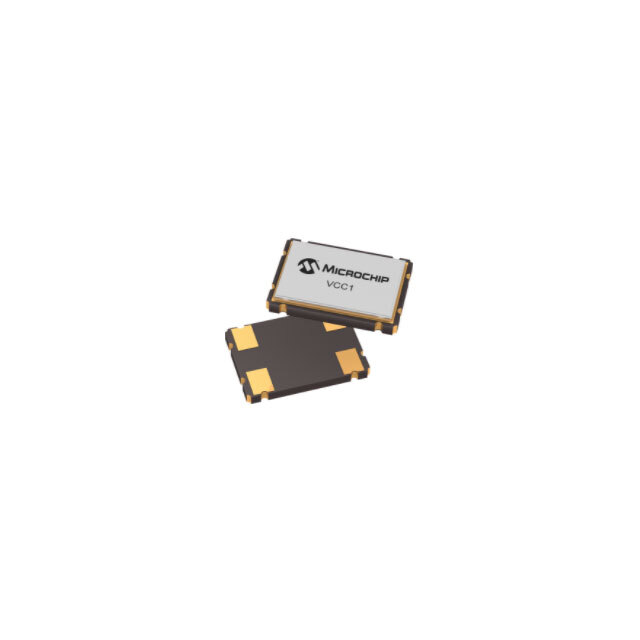

VCC1-1537-114M285000 Microchip Technology – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

VCC1-1537-114M285000

Part No VCC1-1537-114M285000
Manufacturer Microchip Technology
Catalog Oscillators
Description VCC1-1537-114M285000
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, ResonatorsOscillators
Mfr Microchip Technology
Series VCC1
Part Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 114.285 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Operating Temperature -40°C ~ 85°C
Current - Supply (Max) 50mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.075" (1.90mm)
Current - Supply (Disable) (Max) 30μA
Base Product Number VCC1-1537
Ultra Librarian 3D Model Ultra Librarian VCC1-1537-114M285000 CAD Model
