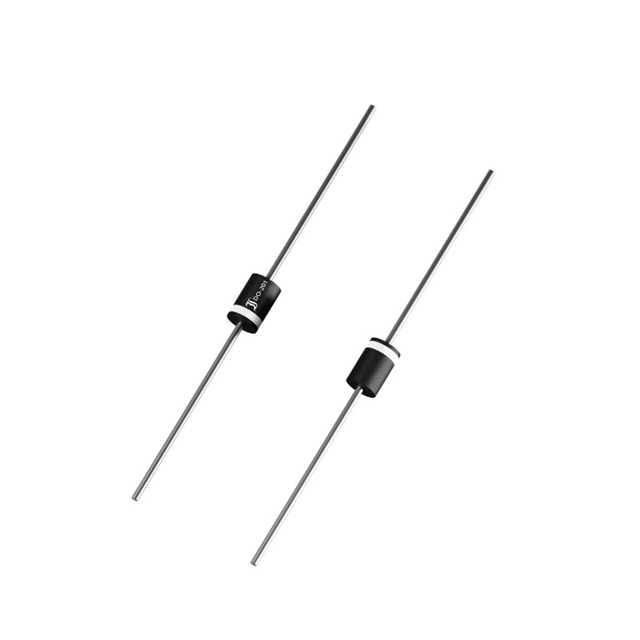

1N5383B Real Image
Same model may have multiple batches, images only for reference.

1N5383B

Part No 1N5383B
Manufacturer Microsemi Corporation
Catalog Diodes - Zener - Single
Description DIODE ZENER 150V 5W T18 / 5 Watt Surmetic 40 Zener Voltage Regulators
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Microsemi Corporation
Packaging Reel
Voltage - Zener (Nom) (Vz) 150V
Tolerance ±5%
Power - Max 5W
Impedance (Maximum) (Zzt) 330 Ohms
Current - Reverse Leakage at Vr 500nA at 108V
Voltage - Forward (Vf) (Maximum) at If 1.2V at 1A
Temperature Range - Operating -65°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package T-18, Axial
Supplier Device Package T-18
Part Number Series 1N5383
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812012-1N5383B
Ultra Librarian 3D Model Ultra Librarian 1N5383B CAD Model

Description

The Microsemi Corporation 1N5383B is a zener diode.

  • Voltage: 150V
  • Maximum Power: 5W
  • Tolerance: ±5%
  • Package: T-18
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (Unlimited)
  • Impedance: 330 Ohms
  • Voltage Forward: 1.2V @ 1A
  • Current Reverse Leakage: 500nA @ 108V
  • Part Number Series: 1N5383
