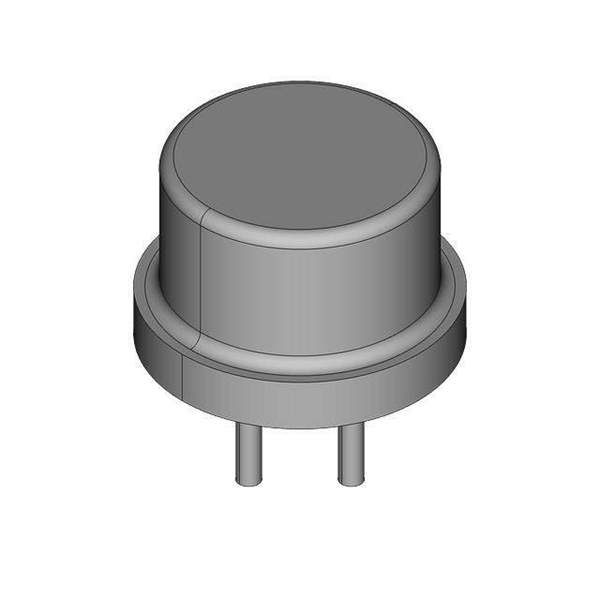

2N6756

Name: 2N6756
Brand: Microsemi Corporation
SKU: 541501
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2N6756
Manufacturer	Microsemi Corporation
Catalog	FETs - Single
Description	N-Channel Power MOSFETs, 14 A, 60 A/100 V \| MOSFET N-CH 100V TO-3
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Microsemi Corporation
Packaging	Bulk
Status	Obsolete
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	100V
Id - Continuous Drain Current	14A
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Maximum) at Id, Vgs	210mOhm at 14A, 10V
Gate Source Voltage(th) (Maximum) at Id	4V at 250μA
Gate Charge (Qg) (Maximum) at Vgs	35nC at 10V
Gate Source Voltage (Maximum)	±20V
Power Dissipation (Maximum)	4W, 75W
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	Through Hole
Supplier Device Package	TO-204AA
Manufacturer Package	TO-204AA, TO-3
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1124189-2N6756
Manufacturer Homepage	www.fairchildsemi.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 2N6756 CAD Model

Alternative Products

Description

The 2N6756 is a MOSFET transistor from Microsemi Corporation with a TO-204AA supplier device package.

Drive Voltage: 10V
Vds - Drain-Source Breakdown Voltage: 100V
Id - Continuous Drain Current: 14A
Rds On (Maximum) @ Id, Vgs: 210mOhm @ 14A, 10V
Gate Source Voltage(th) (Maximum) @ Id: 4V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs: 35nC @ 10V
Gate Source Voltage (Maximum): ±20V
Transistor Polarity: N-Channel
Mounting Style: Through-hole
Manufacturer Package: TO-204AA
Technology: MOSFET
FET Feature: None
Status: Limited supply and demand, Obsolete
MSL Level: 1 (unlimited)
Temperature Range: -55°C to 150°C
