Same model may have multiple batches, images only for reference.

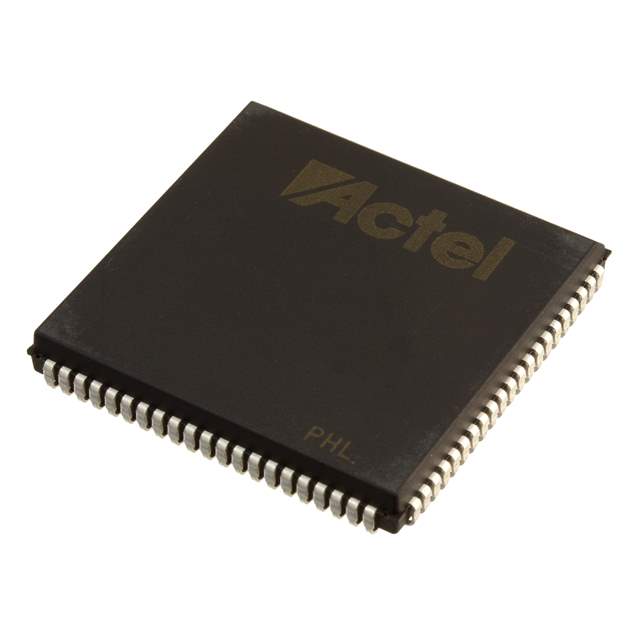

A42MX09-2PLG84 Real Image
Same model may have multiple batches, images only for reference.

A42MX09-2PLG84

Part No A42MX09-2PLG84
Manufacturer Microsemi Corporation
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 72 I/O 84PLCC
Datasheet
A42MX09-2PLG84 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Microsemi Corporation
Series MX
Number of I/O 72
Number of Gates 14000
Operating Supply Voltage 3 V ~ 3.6 V, 4.75 V ~ 5.25 V
Mounting SMD
Operating Temperature Range 0°C ~ 70°C (TA)
Package 84-LCC (J-Lead)
Manufacturer Package 84-PLCC (29.31x29.31)
Win Source Part Number 766742-A42MX09-2PLG84
Popularity Medium
Supply and Demand Status Limited
Family Name A42MX09
Introduction Date August 27, 1997
ECCN 3A991.d.2
Country of Origin Hong Kong
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian A42MX09-2PLG84 CAD Model

Description

The A42MX09-2PLG84 is an integrated circuit manufactured by Microsemi Corporation.

  • Series: MX
  • I/Os: 72
  • Gates: 14000
  • Supply and Demand Status: Limited
  • Operating Temperature Range: 0°C ~ 70°C (TA)
  • Operating Supply Voltage: 3 V ~ 3.6 V, 4.75 V ~ 5.25 V
  • Package: 84-LCC (J-Lead)
  • Mounting Type: SMD
  • Alternative Parts: EPF8452ALC84-3, TPC1020BFN-084C, TPC1010BFN-084I
  • Introduction Date: August 27, 1997
  • Estimated EOL Date: 2026
  • ECCN: 3A991.d.2
  • Country of Origin: Hong Kong
