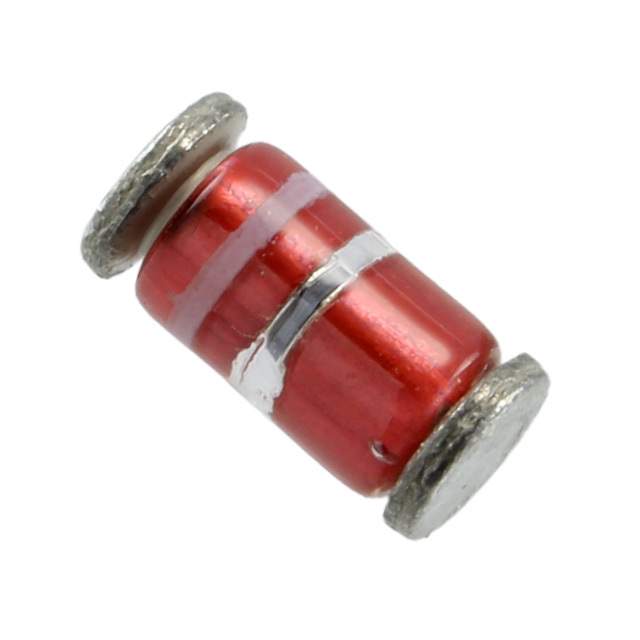

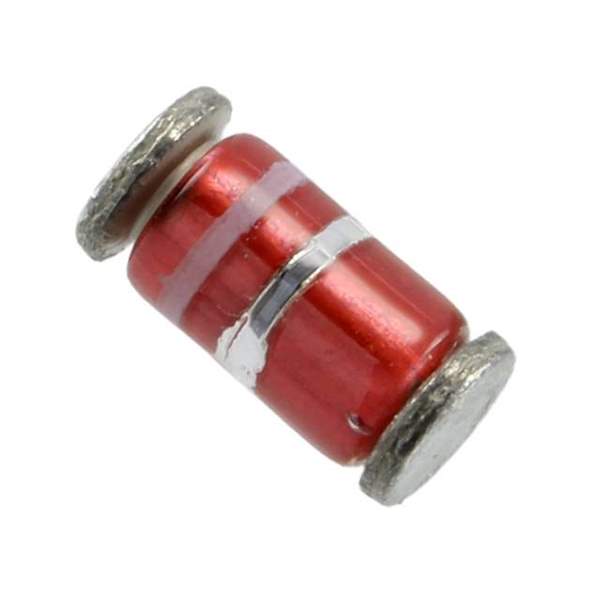

CDLL977B Real Image
Same model may have multiple batches, images only for reference.

CDLL977B

Part No CDLL977B
Manufacturer Microsemi Corporation
Catalog Diodes - Zener - Single
Description DIODE ZENER 47V 500MW DO213AB / Diode Zener Single 47V 5% 500mW 2-Pin DO-213AA Bag
Datasheet
CDLL977B Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Voltage - Zener (Nom) (Vz) 47V
Tolerance ±5%
Power - Max 500mW
Impedance (Maximum) (Zzt) 105 Ohm
Current - Reverse Leakage @ Vr 500nA @ 36V
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 200mA
Operating Temperature Range -65°C ~ 175°C
Mounting SMD
Package DO-213AB, MELF
Manufacturer Package DO-213AB
Win Source Part Number 778228-CDLL977B
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name CDLL977B
Introduction Date January 07, 2001
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CDLL977B CAD Model

Description

The Microsemi Corporation CDLL977B from Microsemi Corporation is a zener diode with a voltage breakdown of 47V.

  • Voltage Breakdown: 47V
  • Power Max: 500mW
  • Voltage Forward (Vf): 1.1V @ 200mA
  • Current Reverse Leakage: 500nA @ 36V
  • Impedance: 105 Ohm
  • Package Type: DO-213AB, MELF
  • Tolerance: ±5%
  • Operating Temperature Range: -65 degrees Celsius to 175 degrees Celsius
  • Applications: Discrete semiconductor products
