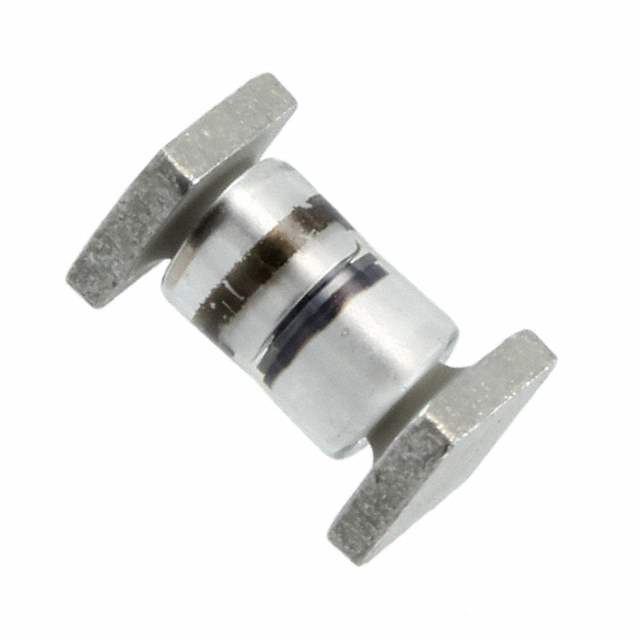

JANTX1N5806US Real Image
Same model may have multiple batches, images only for reference.

JANTX1N5806US

Part No JANTX1N5806US
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description Rectifier Diode Switching 150V 2.5A 25ns 2-Pin A-MELF Bag / DIODE GEN PURP 150V 1A D5A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 150V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 875mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 25ns
Current - Reverse Leakage @ Vr 1μA @ 150V
Capacitance @ Vr, F 25pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package D-5A
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 120874-JANTX1N5806US
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 1
Family Name 1N5806
Introduction Date May 28, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian JANTX1N5806US CAD Model

Description

The Microsemi Corporation 120874-JANTX1N5806US is a standard diode designed for electronic systems.

  • Voltage Rating: 150V
  • Average Rectified Current: 1A
  • Forward Voltage: 875mV @ 1A
  • Mounting: SMD (SMT)
  • Reverse Recovery Time: 25ns
  • Current Leakage: 1μA @ 150V
  • Capacitance: 25pF @ 10V, 1MHz
  • Operating Temperature Range: -65°C to 175°C
  • Family Name: 1N5806
  • Popularity: High
  • Package Dimensions: D-5A
