Same model may have multiple batches, images only for reference.

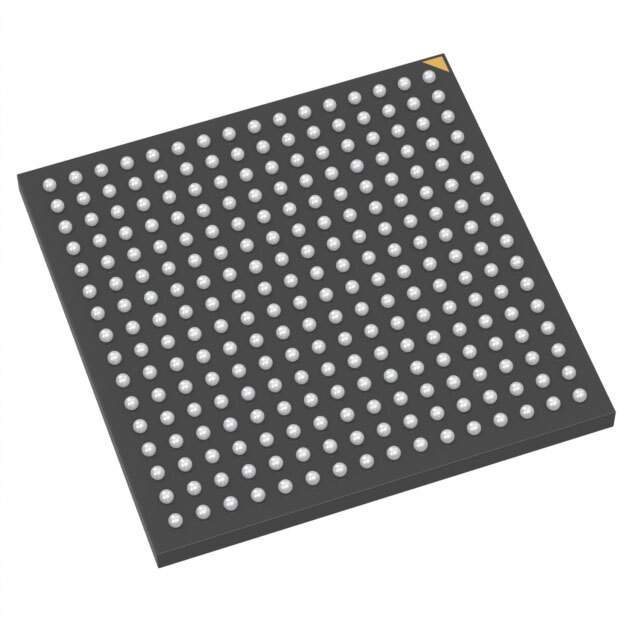

M1AFS1500-FG256 Real Image
Same model may have multiple batches, images only for reference.

M1AFS1500-FG256

Part No M1AFS1500-FG256
Manufacturer Microsemi Corporation
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 119 I/O 256FBGA / FPGA Fusion® Family 1.5M Gates 1098.9MHz 130nm Technology 1.5V 256-Pin FBGA Tray
Datasheet
M1AFS1500-FG256 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Microsemi Corporation
Series Fusion
Total RAM Bits 276480
Number of I/O 119
Number of Gates 1500000
Operating Supply Voltage 1.425 V ~ 1.575 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 256-LBGA
Manufacturer Package 256-FPBGA (17x17)
Win Source Part Number 768320-M1AFS1500-FG256
Popularity Medium
Supply and Demand Status Limited
Family Name M1AFS1500
Introduction Date September 03, 2003
ECCN EAR99
Country of Origin Hong Kong
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian M1AFS1500-FG256 CAD Model

Description

The Microsemi Corporation M1AFS1500-FG256 is a member of the Fusion series of integrated circuits.

  • Package: 256-LBGA
  • Mounting: Surface Mount
  • Operating Temperature: 0°C to 85°C
  • Operating Supply Voltage: 1.425 V to 1.575 V
  • I/O: 119
  • Total RAM Bits: 276480
  • Gates: 1500000
  • Family Name: M1AFS1500
  • Supply and Demand Status: Limited
  • EOL Date: 2025
